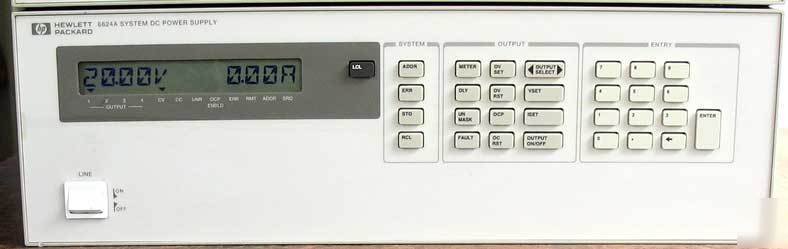

HP/Agilent 6624A System DC Power Supply 4 Outputs Programmable - Installed Option 750 Full Operations, Service & Option 750 Manuals on CD-ROM Please review item Description & Condition MANUFACTURER'S Specifications: Agilent high performance DC power supplies offer spec and accuracy for test optimization. The multiple output, 40W - 105W GPIB 6621A - 6624A and 6627A provide dual-range outputs; fast, low-noise outputs; built-in measurements and advanced programmable features; and protection features to ensure DUT safety. The Agilent 40W, four-output 6624A is a versatile solution help improve system accuracy and reduce test time in a 3U high package. * Option 750 - Relay control and discrete fault indicator/remote inhibit port Output Ratings (2 outputs each) * Low-range volts, amps: 0 to 7 V, 0 to 5 A; 0 to 20 V, 0 to 2 A * High range volts, amps: 0 to 20 V, 0 to 2 A; 0 to 50 V, 0 to 0.8 A Programming Accuracy (2 outputs each) * Voltage: 19 mV, + 0.06%; 50 mV, + 0.06% * Current: 50 mA, + 0.16%; 20 mA, + 0.16% Ripple & Noise (2 outputs each) * Constant voltage rms: 500 µV * Constant current rms: 1 mA Readback Accuracy (2 outputs each) * Voltage: 20 mV, + 0.05%; 50 mV, + 0.05% * +Current: 10 mA, + 0.1%; 4 mA, + 0.1% * -Current: 25 mA, + 0.2%; 8 mA, + 0.2% Cosmetically and physically this unit is in very good condition, is tested and works well. Reconditioned, and Calibrated to meet manufacturer's specifications in our ON-SITE NIST lab by one of our expert certified technicians. This unit comes from a working large-scale industrial/lab environment. 5 day ROR minus s/h both ways F Manuals (3) on CD-ROM (operations, service & option 750) F no other accessories, manuals, modules, probes, orig. packing, etc. Contact via E-mail for more information. HP/Agilent 6624A System DC Power Supply 4 Outputs Programmable - Installed Option 750 Full Operations, Service & Option 750 Manuals on CD-ROM Image Gallery (click thumbnail for larger view) IMAGES ARE NOT NECESSARILY THE SERIAL NUMBER/UNIT YOU WILL RECEIVE Item is sold without accessories probes, power cord, software, carrying case, etc.) unless specifically mentioned in the above description. No implied or expressed warranty unless otherwise stated. Item descriptions are as accurate as possible but may contain errors. Photo images are of the actual item. What you see is what you get. Technical information is provided as available. We reserve the right to rescind any sale if not contacted within 3 days. We currently have skids of equipment that have yet to be placed in inventory, and we are looking to move items quickly. We need to make room! If you don't see what you need, contact us. Your much-needed piece of technology may still be waiting for a spot on our shelves! IN THE EVENT A SOLD ITEM CAN NOT BE CALIBRATED BEFORE DELIVERY: Before our items are put into inventory they are examined in our lab for operational status. Some are then stored in the warehouse until sold at which point it is brought back into the lab for a complete testing and the issuing of the 'CAL/CERT'. Others already have a 'CAL/CERT' issued before being placed in the warehouse. Though rare it is possible for the item to be found during the 'CAL/CERT' process to have a defect not apparent in the initial operational examination. At this point the item is fully reconditioned with the defect corrected... HOWEVER there are times the item my not be repairable or the manufacturer no longer has a part needed to correct the problem. We stock most parts here but there are the times we need to order it and it could happen the part is unavailable. We have multiple units of most of these items and can find one that is completely operational or take a part from one to fix the other. Contact via E-mail for more information. (confirmed address please) Wire Transfers (on large sums we may require the address and phone number of the issuing bank or financial institution). $15 fee for domestic wire transfers. (International wires add $40 which also includes extra paperwork on our end. Pennsylvania residents will be charged 6% sales tax. Exempt status must furnish us with a Certificate of Exemption. Contact via E-mail for more information. Item is sold without accessories probes, power cord, software, carrying case, etc.) unless specifically mentioned in the above description. No implied or expressed warranty unless otherwise stated. Item descriptions are as accurate as possible but may contain errors. Photo images are of the actual item. What you see is what you get. Technical information is provided as available. We reserve the right to rescind any sale if not contacted within 3 days. We currently have skids of equipment that have yet to be placed in inventory, and we are looking to move items quickly. We need to make room! If you don't see what you need, contact us. Your much-needed piece of technology may still be waiting for a spot on our shelves! Contact via E-mail for more information. (confirmed address please) Wire Transfers (on large sums we may require the address and phone number of the issuing bank or financial institution). $15 fee for domestic wire transfers. (International wires add $40 which also includes extra paperwork on our end. Pennsylvania residents will be charged 6% sales tax. Exempt status must furnish us with a Certificate of Exemption. Contact via E-mail for more information. (please look at our rules and privacy policy) |
