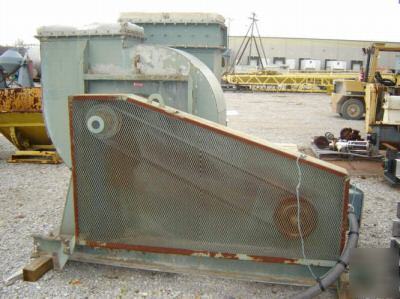

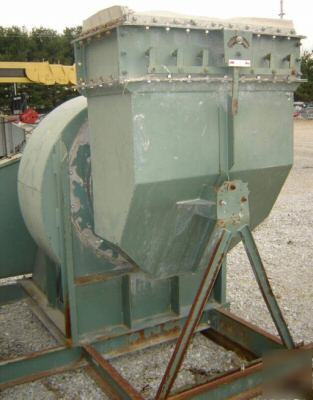

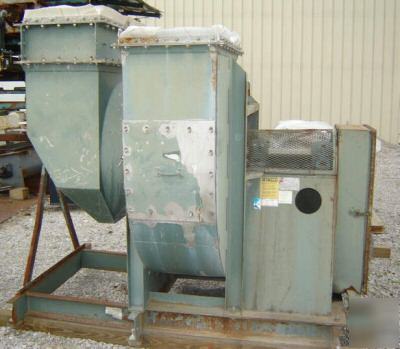

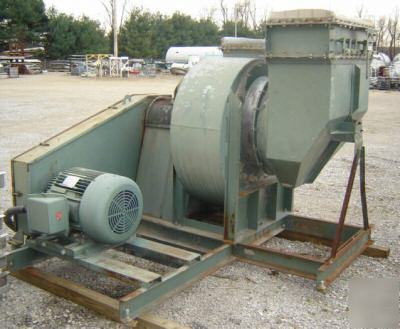

SIZE 33 RTS FAN. RTS WHEEL. 70% NARROW WIDTH. SHOP NUMBER G9901-100. 75 HP TEFC, 230/460 VOLT 60 Hz 1.15 SERVICE FACTOR, 365T FRAME, 1775 RPM MOTOR. ARRANGEMENT 1; MOTOR POSITION W. 304 STAINLESS STEEL HOUSING, INLET ASSEMBLY, INLET CONE, CLEANOUT DOOR, INLET BOX, DRAIN AND INLET BOX DAMPER (PARALLEL BLADE 500 DEGREE DESIGN). 316 STAINLESS STEEL SHAFT. 347 STAINLESS STEEL WHEEL ( MAX SAFE SPEED IS 2205 RPM AT 200 DEGREE F. 316 STAINLESS STEEL DRAIN. UNITARY BASE, GENERAL TRAFFIC SHAFT & BEARING GUARD AND BELT GUARD. CLOCKWISE UP BLAST DISCHARGE AND ROTATION. STAINLESS STEEL INSPECTION PANEL ON HOUSING. COMPLETE WITH INLET BOX AND MANUAL INLET RADIAL BLADE DAMPER. DRIVE GUARD ON SHAFT AND BEARINGS AND SHEAVES AND BELTS. SEE OUR OTHER FAN & BLOWER OFFERINGS AT (please look at our rules and privacy policy) |
