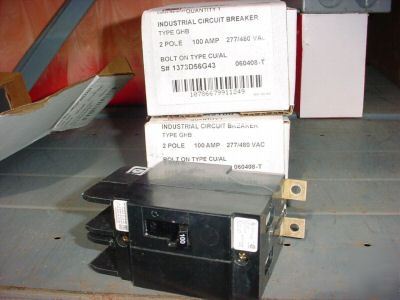

Manufacturer Part Number: GHB2100 Manufacturer: Cutler-Hammer or Westinghouse THERMAL MAGNETIC Frame Type: G Voltage Rating: 480 VAC STAR/277 VAC AT 50/60 HZ, 125/250 VDC Maximum AC Voltage Rating: 277 Maximum AC Voltage Rating - UOM: V Maximum DC Voltage Rating: 250 Maximum DC Voltage Rating - UOM: V Current Rating: 100 AMPERE AT 40 DEG C 14 KILOAMPERE AT 480 VAC STAR/277 VAC, Terminal Type: ALUMINUM PRESSURE LINE TERMINAL, PRESSURE LOAD TERMINAL Additional Information: APPLICABLE STANDARD AS 2184, BS 4752, IEC 157-1, NEMA AB-1, NF C 63-120, SABS 156, SEV 157-1, VDE 0660 Manufacturer Short Name: CHDIS Manufacturer UCC#: 786679 Classification: Non Interchangeable Trip Breaker Short Description: 100A 2P CKT BRKR Full Description: MOLDED CASE, THERMAL MAGNETIC; G FRAME; 480 VAC STAR/277 VAC AT 50/60 HZ, 125/250 VDC; 100 AMPERE AT 40 DEG C; 2 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 14 KILOAMPERE AT 480 VAC STAR/277 VAC, 14 KILOAMPERE AT 125/250 VDC; TERMINAL ALUMINUM PRE Column 3 Price (Contractor would pay ) $458.80 (please look at our rules and privacy policy) |
Jimmy-Campos@modularparts.com (Jimmy Campos) for more information. This email will be sent to Jimmy Campos' actual email address.
