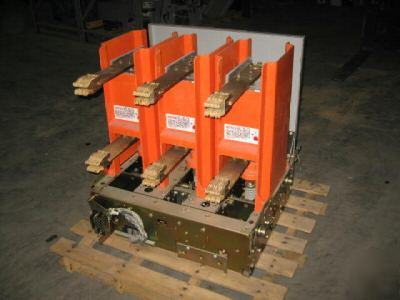

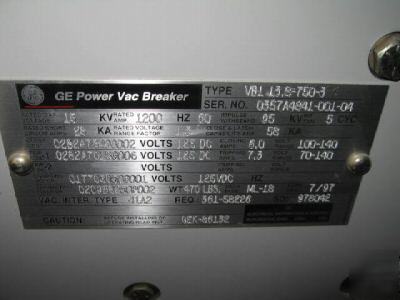

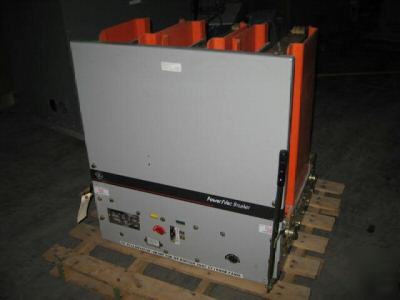

Each General Electrical 1200 Amp Vacuum Breaker is in Excellent Condition both Externally and Internally. Each of these 1200Amp VB1 Industrial Breakers have been very well serviced and maintained and have little use. Rated Max. Voltage: 15 kV Rated Amp. 1200 Hz: 60 Impulse Withstand: 95 kV Int. Time: 5 Cyc Rated Short Circuit Amps: 28 kA Rated Voltage Factor: 1.3 Close & Latch Capability Amp.: 58 kA Close Coil: 0282A7340G002 Volts: 125 DC Closing Amps.: 6.0 Volt Range: 100-140 Trip Coil 1: 0282A7015G002 Volts: 125 DC Closing Amps.: 7.3 Volt Range: 70-140 Charging Motor: 017705050G001 Volts: 125 VDC Connection Diagram: 020988250P002 WT: 470 lbs Mech Type: ML-18 Date MFG: 7/97 (We try to get all of the characters correct when reading a nameplate, but sometimes we can make a mistake. If there are any discrepancies between what you are looking for and what is written, please do not hesitate to contact us for clarification) If you need more photos, I can send them to you. If you have any questions, I will do my best to answer them. Please be as specific as you can. Our business has been in operation for over 20 years. (please look at our rules and privacy policy) |
