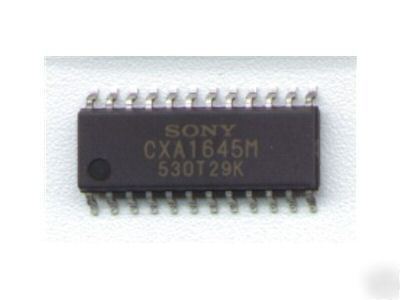

The CXA1645P/M is an encoder IC that converts analog RGB signals to a composite video signal. This IC has various pulse generators necessary for encoding. Composite video outputs and Y/C outputs for the S terminal are obtained just by inputting composite sync, subcarrier and analog RGB signals. It is best suited to image processing of personal computers and video games. • Compatible with both NTSC and PAL systems (RGB output, composite video output, Y output, C Both sine wave and pulse can be input as a Built-in band pass filter for the C signal and delay Built-in R-Y and B-Y modulator circuits Built-in PAL alternate circuit Image processing of video games and personal computers Block Diagram and Pin Configuration Operating temperature Topr –20 to +75 °C Storage temperature Tstg –65 to +150 °C Allowable power PD CXA1645P 1250 mW Recommended Operating Condition And we salute our friends in other countries around the world! (please look at our rules and privacy policy) |
