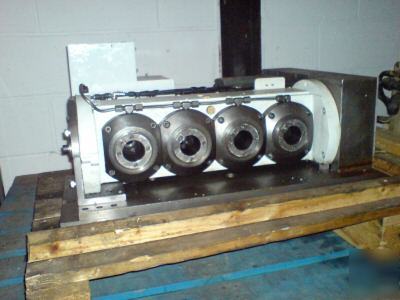

CNC rotary table rebuild specialists The Nikken CNC100-4W is a superb multi spindle CNC rotary and table using the standard Nikken CNC-100 spindle format into a multispindle casting. The CNC100-4W has 120mm between the spindle centres and can be used vertically or horizontally and be fitted with a Nikken 8800DX control (not supplied - extra cost option) or any number of suitable motor makes and models of around 4 to 6Nm continuously rated. The picture shows the motor mounted to the rear of the table (for vertical use / horizontal axis) however the motor position can be to the right side for use in both planes. (Please specify when ordering). The table is capable of carrying 15kg unsupported or 30kg horizontally or with tailstock (not included). The table rotary axis has a 1/180 all geared final drive ratio giving a rotation speed of 11.1rpm with a 2,000rpm motor or faster with faster motor selction. The unit has an air clamping system for brakes and can be fitted with a large selection of chuck options which include 5C or pneumatic or hydraulic clamping cylinders (not inlcuded). This table is fully warranted for parts and labour for 12 months from delivery or can be rented through our rental scheme. Finance packages are available on this item through Close Asset Finance Limited (subject to status). The table weighs around 135kg. You can call us on +44 1246 206000 or email us at Effie_White@modularparts.com to discuss interface and connection of this item to your target machine. All our products are full warranted for both parts and labour. If you do not find what you are looking for in the store, then please give us a call. We look forward to hearing from you. Mansfield Business Centre Ashfield Avenue Mansfield NG18 2AE Tel: 0(***) 061 9000 Fax: 0(***) 061 9001 (please look at our rules and privacy policy) |
