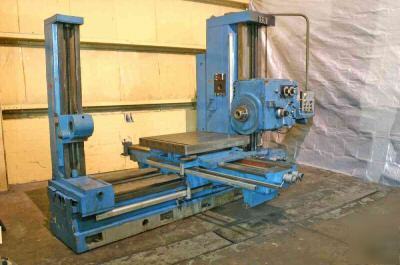

Photo Sharing and Video Hosting at Photobucket 4" CERUTI HORIZONTAL TABLE TYPE BORING MILL SERIAL .............................. 52401 MODEL ............................... AC100 BUILT IN ROTARY TABLE ............... POWER FEED DIAMETER OF SPINDLE ................. 4" AREA OF TABLE ....................... 51" X 43" SPINDLE SPEEDS ...................... (18) 12 TO 1200 RPM SPINDLE FEEDS ....................... (16) .001 TO .192 IPR TABLE, SADDLE, VERTICAL HEAD FEEDS .. (16) 1/4 TO 48 IPM TABLE CROSS TRAVEL .................. 58" VERTICAL SPINDLE TRAVEL ............. 48" SADDLE LONGITUDINAL TRAVEL .......... 60" SPINDLE TRAVEL ...................... 32" OUTBOARD SADDLE SUPPORTS ............ YES RAPID TRAVERSE ...................... YES PENDANT CONTROL ..................... YES SPINDLE MOTOR ....................... 10 HORSEPOWER CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! 1-800/MACHINE (800/622-4463) Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery (please look at our rules and privacy policy) |
