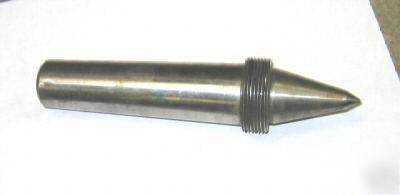

This is a NICE USED Jarno Dead Center. I am pretty sure it is a Jarno #13 taper but not 100% sure. It is definitely Jarno and not morse taper or brown & sharpe taper. Diameter at the small end of the spindle taper is 1.292" Diameter at the LARGE end of the spindle taper is 1.555" This one has a drop of about .100" in diameter over a 2" distance of the taper so I know it is not morse taper or Brown and Sharpe taper. The large diameter of the taper at the holding end is 1.388" The tip does not come to a sharp point it is about .071" diameter flat tip. The thread diameter is 1-7/8" and 12 tpi right hand If you need a specific size of anything just ask. If in Michigan add 6% sales tax. Thanks! (please look at our rules and privacy policy) |
