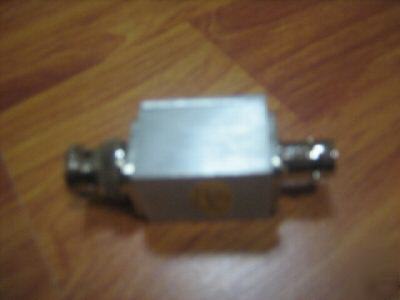

Brand New Impedance Transformer . Brief introduction: In the testing system below frequency band 4GHz, it is matched with different impedance between 50Ω~75Ω when using. II. SpecificationsFrequency Range: 4000MHz VSWR: ≤1.3（BNC-50Ω-J） 6dB±0.5 dB Insertion Loss ≤1. 5（BNC-75Ω-K） 0.5dB±0.2 dB Insertion LossConnect: BNC-50 J/BNC-75KDimensions: 22x80Weight: 105g III. Application scope Suitable for microwave measurement aspect (eg. the manufacture and maintenance industry of communications equipment, of microwave components, the microwave measurement industry of higher learning institution or research institute.) IV. Operating instructions 1.Notice a. Input signal should correspond to impedance transformer nominal value. Otherwise, it will cause unusefulness and damage of the impedance transformer. b. Before using, ensure input and output port without error connection, in order to avoid damaging impedance transformer. c. Check if the joints linking size of impedance transformer meets the requirements before they are allowed to connect, otherwise it will damage components or affect its performance. d. Prevent impedance transform from intense collision, avoid damaging related components of the impedance transform. 2. Operating Method Directly couple into a corresponding connector. 3. MaintenanceClean the in-out connection port with alcohol, to ensure good contact when using (please look at our rules and privacy policy) |
