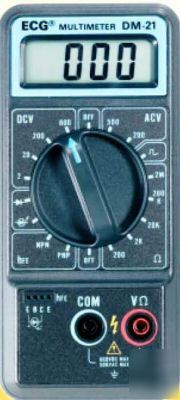

New Phillips ECG DM-21 DIGITAL MULTIMETER WITH SQ. WAVE GENERATOR, HFE, LED TEST NEW in Factory package! MSRP: $39.95 More Phillips ECG DM-21 DIGITAL MULTIMETER WITH SQ. WAVE GENERATOR, HFE, LED TEST. (includes: Battery, Test Leads (ML-375) and Operating Instructions) Download PDF Technical Data Sheet: Datasheet - Datasheet Display: 3 1/2 Digit LCD, 0.55" high, with polarity Overrange Indication: "1" or "-1" is display Measurement Rate: 2.5 times per second Operating Environment: 0"C to 50"C, <70% relative humidity Storage Environment: -20°C to 60°C, <80°A relative humidity with battery removed Power: 9V carbon zinc battery (NEDA 1604) Battery Life: 150 hours typical with carbon zinc cells Low Battery Indicator: Symbol is displayed Dimensions, Weight: 2.8" widex 6" long x 1.5" truck (70mm x 151mm x 38mm), net weight 7oz. (200g) Input Impedance: 450KD, on all ranges. Maximum Input: 600V DC or 500AC rms. Transistor hFE Test (PNP, NPN) Test Condition: 10uA Base Current @ <3.5V hFE Range: 0-1000 Input Impedance: 1M? on all ranges. Maximum Input: 600V DC or 500AC rms. Overload Protection: 500V DC or 350AC rms Output: ±3 to -0.5V DC, 50% Duty Cycle (please look at our rules and privacy policy) |
