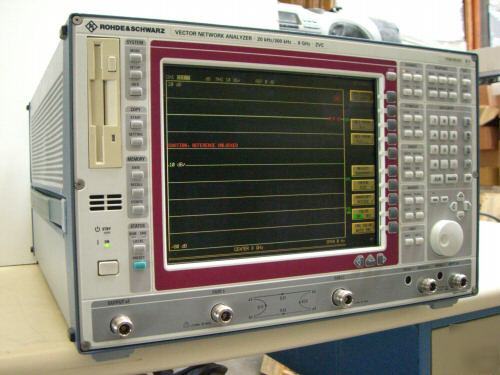

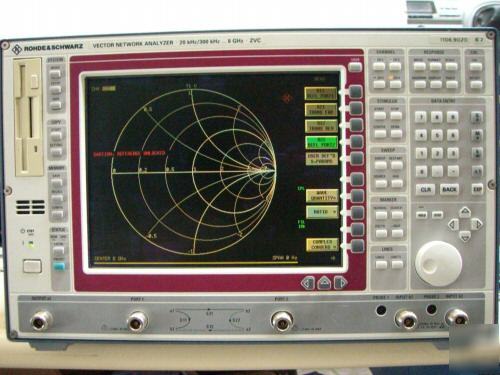

R&S ZVC (ZVC62) Network Analyzer, 20 kHz - 8 GHz, Loaded w/ Options * Description: The R&S ZVC 8 GHz Network Analyzer includes a built-in test set with active SWR Bridges, an electronic RF switch, two measurement channels and two reference channels. With this config, a variety of unique calibration procedures, eg., TNA, can be performed, which drastically improve the accuracy, particularly in non-coaxial applications. This unit is suitable for applications in R&D and production no matter how sophisticated. It is always equipped with 50 W active test sets. Additional step attenuators (INCLUDED w/ THIS UNIT), 0 dB to 70 dB, can be inserted into the generator paths and the two measurement channels to extend the power range of the receivers to +27 dBm and to lower minimum output power to -95 dBm. When the test set is fitted with attenuators and the External Measurements option (INCLUDED w/ THIS UNIT), generator and receiver can be alternatively switched to three ports on the front panel (OUTPUT a1, INPUT b1, INPUT b2). This increases output power, sensitivity and dynamic range. In addition, the flexibility on external test sets, e.g. using an external pre-amplifier, is enhanced. The Reference Channel Ports allow to feed the signal for the reference channel a1 from outside. This feature facilitates phase measurements on frequency converting devices. The test ports are fitted with female N connectors. * Other Key Facts: Excellent dynamic range >130 dB (IF bandwidth 10 Hz) Low inherent noise <-130 dBm (measurement bandwidth 3 kHz) Broad frequency range for universal use 20 kHz to 8 GHz, High measurement speed <125 µs/point (normalized) <240 µs/point (fully calibrated) Fast data transfer via IEC/IEEE bus Transfer time <15ms (200 points) Customized, upgradeable family concept Modular design using options, High sweep rate >25 sweeps/s (200 points) Manual calibration techniques TOM, TRM, TRL, TNA, TOM-X, TOSM Automatic calibration AutoKal Compatibility with PC, CAE Internal PC with Windows NT operating system suitable for PC applications. * ***This R&S ZVC is the ZVC62 which specifies it as: 4 Channel, bi-directional, 50 Ohm, Active SWR Bridge.. * Other Comments / Notes: Original MSRP of this unit is over $75,000.00. This unit includes the following options: * B4: Mixer Measurements (includes harmonics measurements) * B6: Reference Mixer Ports * B21: Generator Step Attenuator for one Port 1 * B22: Generator Step Attenuator for one Port 2 * B23: Receiver Step Attenuator for Port 1 * B24: Receiver Step Attenuator for Port 2 * B25: External Measurements (50 Ohm, frequency range 20 kHz to 8 GHz) * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (please look at our rules and privacy policy) |
