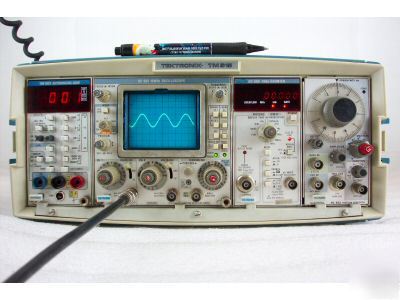

Tektronix TM515 w/ DM502A SC502 DC508 FG502 The TM515 Power Module/Mainframe provides five slots and is designed to supply all power required for the TM500-Series plug-ins. Can be used in the lab or the field, just snap on the front & back covers to protect the plug-ins and it s ready to go! 6.8"H x 15"W x 20"D. The DM502A Digital Multimeter measures seven different functions with push-button convenience. Measures DC and AC voltage, DC and AC current , dB, resistance and temperature. True RMS provides more accuracy in AC measurements on distorted, noisy, random or other non-sinusoidal AC waveforms. Resistance mode features HI-LO voltage (2 V to 0.2 V). Requires Tek TM-Series Power Module. Temperature probe not included. The SC502 provides 15MHz bandwidth and dual trace with both normal and automatic triggering capabilities. Features include a maximum sweep rate of 20 ns and for increased versatility, the SC502 provides a very wide vertical sensitivity range (1 mV to 20 V/division). The DC508A Counter, designed to operated in a TM500-Series Mainframe, measures frequency from 10 Hz to 1.3 GHz. A 9 digit LED display shows frequency or total events from 0 to 999,999,999. The decimal point is automatically positioned and leading zeros suppressed. The FG502 Function Generator Plug-In provides low distortion sine, square, triangle, positive and negative pulse and ramp waveforms. Frequency range from 0.1 Hz to 11 MHz. A voltage controlled frequency (VCF) controls the output frequency from an external source. IF THE PICTURES DOES NOT APPEAR IN ITS GIVEN SPACE, RIGHT CLICK ON THE SPACE AND SELECT SHOW PICTURE. CHECK OUT OUR STORES FOR MORE QUALITY MERCHANDISE AT A FRACTION OF RETAIL PRICE MrPowertech's Test Equipment Store VISIT OUR HEWLETT PACKARD STORE MrPowertech's Hewlett Packard Store VISIT OUR TEST AND MEASUREMENT STORE MrPowertech's Test & Measurement Store (please look at our rules and privacy policy) |
