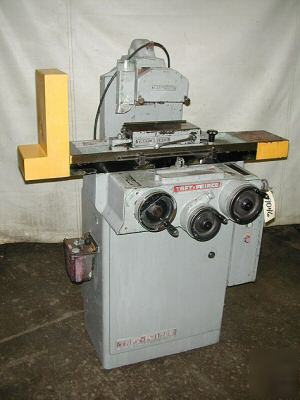

TAFT-PEIRCE SERIES 100 PRECISION HAND FEED SURFACE GRINDER Table movement per revolution of hand-wheel 3.4" Crossfeed movement per revolution of hand-wheel .100" Standard handwheel graduations .001" Fine feed handwheel graduations .000025" Wheelhead movement per revolution of handwheel .050" Standard handwheel graduations .0005" Fine feed handwheel graduations .000025" Wheel size 7" x 1/2" x 1-1/4" Hole Overall dimensions 61"W x 45"D x 66"H 1 HP 230/460 3/60 3,450 RPM Direct drive spindle motor 5" x 10" Permanent magnetic chuck Taft-Peirce 3,450 RPM direct drive spindle (please look at our rules and privacy policy) |
