Hp / agilent 8494B attenuator / 11D b w/ option 002


Submitter: l.huff@modularparts.com (Lorraine Huff)
What Lorraine Huff is selling: Hp / agilent 8494B attenuator / 11D b w/ option 002

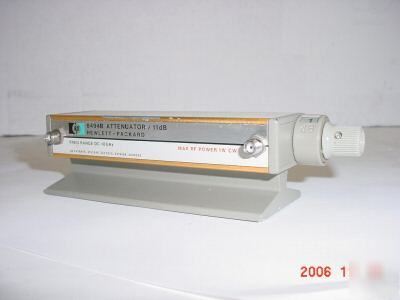

HP / Agilent 8494B Attenuator / 11d B w/ option 002
The Agilent 8494B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
* Frequency Range: dc to 18 GHz
* Attenuation Range: 0 to 11 dB, 1 dB steps
* Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
* Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
* Repeatability Life: 0.03 dB maximum, 5 million cycles per section
* Maximum RF Input Power: 1 W (average), 100 W (peak)
* Connector Type: choice of Type-N female, SMA female, APC-7
* Option 002: Type SMA female
* Our hours of operation are M-F, 10-5PM Pacific Standard Time.
Phone: (***) 257-2445 Fax: (***)257-6310
