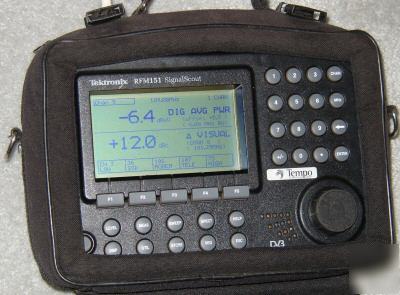

Tektronix TEK RFM151 Signal Scout Cable Signal Level Meter with: user manual, padded carrying bag Also included is the CSS151 Control and Analysis Software and Data Cable * Digital Channel RF Measurement Suite Includes Average Power Level Plus Noise/Distortion Measurement * Exclusive Ingress Monitor Mode Records Ingress Violations of up to 32 User-defined Frequency and Level Windows * Enhanced Spectrum Mode Increases Ability to Capture Low-level and Bursty Signals * AM and FM Demodulators with Speaker Helps Identify Ingress Sources * Digital Channel Level and Noise Testing * Ingress Monitoring and Troubleshooting * Cable System Leak Tracking * Analog Channel Performance Verification and Troubleshooting "The Signal Scout RFM151 is a high-performance RF measurement field tool tailored for analog/digital cable TV networks. It is designed to meet the demanding requirements of cable television technicians performing troubleshooting and maintenance operations anywhere in the network. The Cable TV RF Analyzer RFM151 provides all of the basic signal level measurement capabilities, plus spectrum analysis, ingress and digital channel RF measurement capabilities not available in comparable products. " RFM151 Features and Specifications (2 MB PDF) SignalScout RFM151 Instruction Manual (1.5 MB PDF) High-Definition (HD-8VSB) Channel 9 Spectrum Analysis of Analog Channel 8 and High-Definition (HD-8VSB) Channel 9 Also included is a padded carrying bag. Newish High power battery holds a very good charge. Battery is less than 18 months old. Top side connectors (The RF input is a precision 75 ohm connector with a replaceable F or BNC style adapter). Tektronix CSS151 Control and Analysis Software. The CSS151 Software Includes Ingress/Spectrum Analysis Capability and Report Generation. The CSS151 Software runs on Windows XP and also the older Windows Versions (98se, 98, 95 and 3.1). The CSS151 SignalScout software includes the following applications: * Spectrum/Ingress Worksheet * Sweep/All Channels Worksheet Together, these applications support: * Uploading and organizing measurement results stored in the NVRAM of a Tektronix SignalScout RFM151 RF analyzer. These results can be analyzed, printed, archived, tested against alarm limits, and exported to other applications for further processing. * Creating and downloading measurement sequences to the RF analyzer. * Interactive control of the RF analyzer using a point–and–click user interface. * Creating and exporting custom channel tables. These Channel Fields can only be edited/created using the CSS151 software. * Primary Freq: 4.50–1080.00 (10 kHz min. resolution). Can be the analog visual carrier or the digital carrier. * Aural Offset: 4.5, 5.5, 6.0, or 6.5 only. Offset to the aural carrier(from visual carrier). N/A for digital channels. * Second Aural: Offset MHz None, 4.72, 5.74, 5.85, or 6.55 only. Offset to the second aural carrier (from visual carrier). N/A for digital channels. * Type: NTSC, PAL, SECAM, or DIGITAL only. * C/N Bandwidth: 0.1 to 25.5. Bandwidth to normalize C/N measurements to. * Channel Edge: –327.6 to +327.6 (10 kHz min) resolution. Frequency offset from primary carrier to the channel edge (guard band). Used to locate the noise measurement point for in-service C/N measurement and for determining the lower edge of the modulation envelop for digital carriers. Customized Settings – Time-Saving Measurement Sequences: The RFM151 and CSS151 Software form a powerful tool tailored to an individual cable system. By creating automatic test sequences using the CSS151 software, test time and errors are reduced. Tests can be setup to run at fixed time intervals using the interval timer in the RFM151, or under technician control. These sequences can be used for the FCC required tests including the 24-Hour test, or just for routine maintenance. Report Generation: Data in the worksheet can be printed directly, or processed into concise reports for hard copy files. Reports include a Status Report that shows how well the system is performing with regard to level differences between adjacent channels and minimum and maximum level differences. Another report shows the visual carrier level and visual-to-aural carrier difference over four six-hour time periods for monitoring system performance over time and temperature. Both reports can be printed with up to six lines of header text for displaying additional information. The CD has User Manuals for the CSS151 software and the RFM151 meter (both PDF files) and the CSS151 software RS–232 Serial Data Cable for communication between the CSS151 SignalScout application and the RFM151 RF analyzer. No personal or business checks! This item is guaranteed to work. You have 3 days after delivery to verify. If you decide to return I will need to be contacted first with your reason for returning item. If reason is valid I will authorize return. (please look at our rules and privacy policy) |
