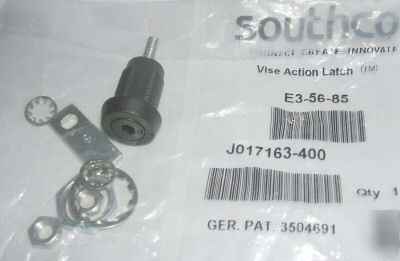

Use them on all type of cabinets, doors and access panels. Powder Coat Black; Material: Die Cast Zinc Access/Operation: Hex Tool operated style- 4mm (5/32) Hex/Allen socket/recess head; 0.81" OD of head; Indicator marks on head align with pawl when fully latched. Has an internal O-ring gasket for sealing. Grip Range: 25.4-28.6 mm (1 - 1.13 in) ; 0.17" PULL-UP ; 1.65" depth from panel face; Maximum static load: 440 N (100 lbs.); Average ultimate load: 690 N (155 lbs.) Mounting hole: 16mm / 0.625" ; 5/8-24 Thread mounting nut and lock washer included; 13mm / 0.50" MAX Door thickness. Pawl: Straight - No offset; depth adjusted via two 10 mm Jam Nuts and Lockwashers (included) on a M6 thread shaft; 80 degree pawl rotation; Pawl is 12mm / 0.472" wide and rotates in a 23mm / 0.91" arc from center of Southco Compression Latches, E3-56-85 Non-US Postal Money orders are delayed until they clear. (please look at our rules and privacy policy) |
