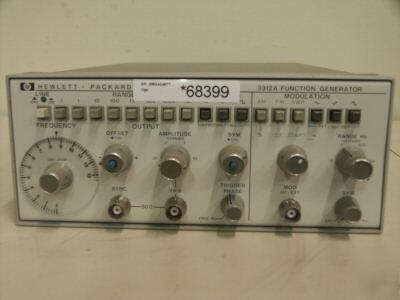

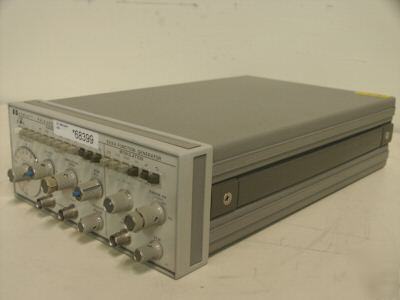

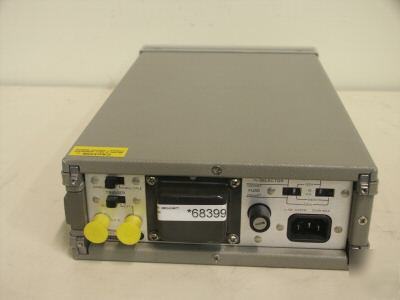

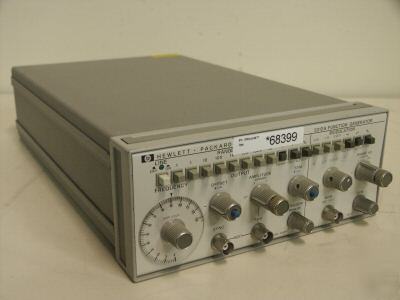

HP/Agilent 3312A Function Generator, 0.1Hz to 13Mhz, sine, square, triangle, ramp, pulse, am, fm, sweep, burst. The HP 3312A Conbines Two Seperate Function Generators in One Instrument. A Main Generator and a Modulation Generator. The Frequency Range of the main Generator is 0.1Hz to 13Mhz in Eight Decade Ranges. The Modulation Generator Frequency Range is 0.01Hz to 10kHz. Both the Main Generator and the Modualtion Generator Provide Sine, Square, Triangle, Ramp, and Pulse Outputs. The Symmetry of all Waveforms Can be Varied Over a Range of 80:20 to 20:80 on the Main Generator and is set at 10:90 on the Modulation Generator. The Main Genertor Can be Modulated or Triggered by the Modulation Generator to Provide AM, FM, Sweep or Burst. The Main Generator can Also be Modulated by an External Source Connected to the MOD Connector on the Modulation Generator. The Frequency of the Main Generator Can be Externally Controlled by Applying an AC or DC Voltage to the VCO Input. The Output Attenuator has a Range of More Than 1000:1 so That Output Levels Ranging From 1mV p-p to 10V p-p Into 50 Ohms Can be Obtained. The HP 3312A Has a DC Offset Capability Which Allows the DC Operating Point of the Main Generator Output to be Adjusted From -10V to +10V DC (as long as the DC offset plus instantaneous AC does not exceed +/-10V). The DC Offset Can be Adjusted Using the Front Panel OFFSET Control or Set to 0 Volts by Pushing the Associated CAL Button. All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor. If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit... If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money. Be sure to add me to your favorites list! (please look at our rules and privacy policy) |
