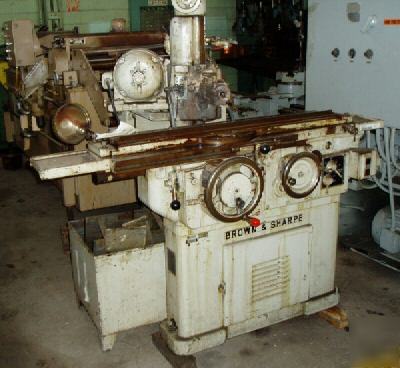

#13 BROWN & SHARPE UNIVERSAL TOOL & CUTTER GRINDER New 1952, Serial No 525-13-199, Model 13, Series "525" Work Diameter, Maximum................. 8" Work Length Between Centers............ 15" Distance Between Centers............... 24" Table Longitudinal Travel.............. 22" Wheelhead Transverse Travel............ 10.25" Wheelhead, Vertical Slide Travel, Total 8.375" Wheel-Spindle to Table Top, Minimum.... 3.75" Wheel-Spindle to Table Top, Maximum.... 12.125" Work-Center to Spindle-Center, Minimum. 2.25" Work-Center to Spindle-Center, Maximum. 12.5" Table Swivels, Degrees................. 90-DEGREES Wheelhead Spindle Swivel, Degrees...... 110-DEGREES Workhead Angular Setting (+/-)......... 100-DEGREES (3) Grinding Spindle Speeds, Range..... 2500 to 5150 RPM (4) Workhead Spindle Speeds, Range..... 128 to 540 RPM (6) Longitudinal Table Speeds, Range... 7.7 to 100 IPM Weight, Approximately.................. 2900 LBS PRICE: F.O.B. OUR WAREHOUSE........... $2,950.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
