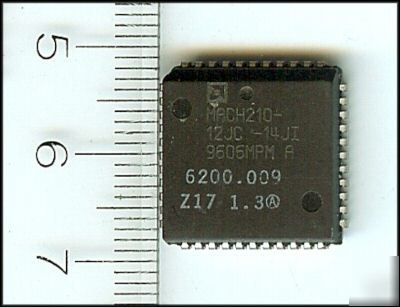

Now over 1,400 items in our Store! These parts are pulled from working boards. Please note: The following spec sheet / information is provided by the manufacturer and may cover several different items and/or products. I am offering the part listed in the heading and picture ONLY. High-Density EE CMOS Programmable Logic PD Commercial 12 ns tPD Industrial * 38 Inputs; 210A Inputs have built-in pull-up resistors * Peripheral Component Interconnect (PCI) compliant * 64 Flip-flops; 2 clock choices * 4 “PAL22V16†blocks with buried macrocells * Pin-compatible with MACH110, MACH111, MACH211, and MACH215 The MACH210 is a member of AMD’s high-performance EE CMOS MACH 2 device family. This device has approximately six times the logic macrocell capability of the popular PAL22V10 without loss of speed. The MACH210 consists of four PAL blocks interconnected by a programmable switch matrix. The four PAL blocks are essentially “PAL22V16†structures complete with product-term arrays and programmable macrocells, including additional buried macrocells. The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fully-connected PAL blocks. This allows designs to be placed and routed efficiently. The MACH210 has dedicated buried macrocells which, in addition to the capabilities of the output macrocell, also provide input registers or latches for use in synchronizing signals and reducing setup time requirements. for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (please look at our rules and privacy policy) |
