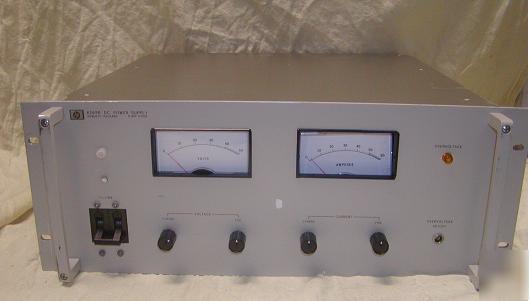

Agilent HP 6269B 40 V, 50 AMP Power Supplies * Auto-series, auto-parallel, and auto-tracking operation * <50us load transient recovery * Output ratings (0 - 55 ° C): 0-40 V, 0-50 A * Ripple and noise (20 Hz to 20 MHz): CV: 1 mV rms, 5 mV peak-to-peak; CC: 25 mA rms * Load regulation: 0.01% + 200 uV, 0.02% + 2 mA * Line regulation: 0.01% + 200 uV, 0.02% + 2mA * Physical Specifications: Weight: 40.3 kg (89 lbs); Dimensions: 483 mm W x 173 mm H x 479.4 mm D (19 in x 6.81 in x 18.88 in) (please look at our rules and privacy policy) |
