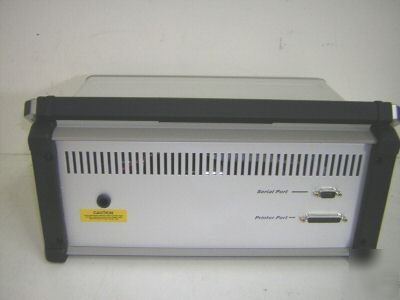

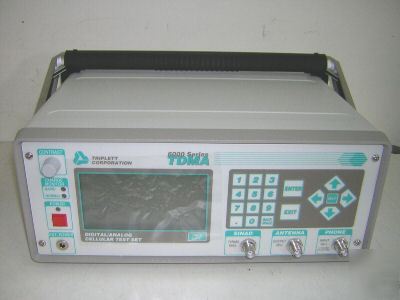

* TRIPLETTT SERIES CELLULAR PHONE TEST SYSTEM * ACCESSORIES ARE NOT INCLUDED * THE ITEM IS IN UNUSED CONDITION * WARRANTY - GUARANTEED AGAINST DOA (DEAD ON ARRIVAL) THE ITEM IS SIMILIAR TO MOTOROLA TDMA 1000. Cellular base station simulation: Selectable SID, SAT, channel number and more; A&B channels; mobile-to-land calls; land-to-mobile calls; paging; handoff to voice channel. Variable output level: -55 to -120 dBm; over-the-air or direct connected testing; input and output level compensated for test configuration losses; phone information display. Autonomous phone registration; SAT frequencies and deviation measurement; RF frequency; ST duration; SINAD measurement; power and VSWR time and frequency graphs; audio deviation; handoff check; audio echo test; power level test; release timing; 1 kHz tone check; alert; audit; sensitivity test; send identification number; retrieves ESN/MIN/SCM of phone; called address ST duration; send number. Mobile assisted handoff (MAHO); bit error rate test; modulation quality (EVM, I/Q, offset, phase, frequency error, droop); handoff check; burst power envelope display; DTMF burst; audio echo test; power level test; alert; audit; bad frame masking test. Analog to analog; analog to digital; digital to analog; digital to digital. RF frequency; RF power; deviation, SINAD. The Motorola (Triplett / Harris) TDMA 1000 is a portable cellular test system designed to automatically test analog EAMPS cellular telephones and dual mode analog EAMPS/TDMA digital cellular telephones. The tester will provide pass/fail results and parametric measurements. The tester is designed to provide complete test capabilities for the user with a minimal amount of technical expertise in cellular telephone technology as well as detail testing capabilities for service technicians and engineers. The test system provides a wide range of tests for both the analog and digital functions of cellular telephones. This tester can be used in the field or on a bench, to verify an installation, verify a problem, analyze a failed cellular telephone, verify a new cellular telephone, or repair, calibrate and adjust cellular telephones. The Motorola TDMA 1000 may be powered from an AC power pack, car cigarette lighter adaptor, or internal battery. The tester will operate for at least four continuous hours from the internal battery pack when it is fully charged. The results of the testing can be viewed on the LCD display and/or printed out to a serial or parallel printer. This information is stored in the tester's non-volatile memory. The tester will save the results of the last 32 tests performed. The tests are time and date stamped and marked with the cellular telephone's ESN number automatically to identify each test result stored in memory. The Motorola TDMA 1000 offers all of the features and functions necessary for service, maintenance and installation of conventional EAMPS and TDMA dual mode cellular telephones. The ergonomically designed front panel makes the unit extremely easy to operate. A large, easy-to-read LCD screen displays all test parameters and Help information at a glance. Additionally, the Motorola TDMA 1000 features: - Cellular base station simulation (EAMPS and TDMA) - Selectable tolerances for parameters in Autotest - User adjustable deviation for modulation (SAT, ST, DATA) - User adjustable SAT frequencies - Multiple test results storage - Parallel and serial printer ports - Truly portable, weighs less than 25 lbs. and provides 4 hours of operation from the internal battery - Checks and verifies proper antenna functionality. Motorola TDMA 1000 specifications: The Motorola TDMA 1000 will test and verify the proper installation and function of TDMA dual mode digital and analog cellular telephones in accordance with standard IS-54B. The TDMA 1000 serves as an emulator of the base station by simulating base station functions and interrogating the telephone. The TDMA 1000 will simulate incoming dialing, establish (simulated) communication, identify incoming dialing and produce audio signals through the entire telephone path. The TDMA 1000 will measure the performance parameters of the telephone and ensure these parameters meet the prescribed specifications. The TMDA 1000 features a simple user interface to ensure a quality installation for even an inexperienced installation technician. It also verifies that the telephone is working in order. RF output: (at front panel TNC connector): Output level: -55 dBm to -120 dBm ±2 dBm; channels: 832; channel spacing: 30 kHz; Gen output spurious: -50 dBc for adjacent channels. data: 10 kHz; data deviation: 8 kHz ±650 Hz; SAT frequency: 5970, 6000, 6030 Hz ±1 Hz; SAT deviation: 2 kHz ±200 Hz; audio frequency: 1 kHz ±1 Hz; audio deviation: 2 kHz ±200 Hz. Digital modulation: Format: Pi/4 DQPSK: (as defined in IS-54). RF input: (at front panel TNC connector): RF input: VSWR 1.50:1 typical overload 15 W; frequency range: 824-849 MHz; input range: -45 to +10 dBW; power measurement: ±1.25 dB; RF frequ meas range: 824-849 MHz; RF frequ meas accuracy: time base ±20 Hz; RF frequ resolution: 10 Hz; RF frequ meas sensitivity: 10 dBm. voice: 500-12,000 Hz; SAT: 500-4000 Hz; ST: 4000-9000 Hz; data: 4600-10,000 Hz; accuracy: ±(7.5 % +50 Hz). Error vector magnitude measurement: Range: 1.15 to 5:1; accuracy: ±15% for -14 dBW. Input level: 30-80 mVrms; accuracy: ±1 dB at 12 dB SINAD. Operating power: internal battery or charging power; AC power: 100 to 240 Vac, 50 to 60 Hz (charging power); DC power: 10.5 to 15 Vdc (charging power); internal battery: sealed lead acid (4 hours typical); operating temperature: 0 to 50 °C; case: portable case with adjustable bail handle; display: LCD flat display; dimensions: 14" x 6" x 10.5"; weight: <25 lbs. Operating stability: <±0.02 PPM; aging per annum: <±0.10 PPM. Printer port: RS-232C and parallel; RF connectors: TNC; SINAD connector: BNC. (please look at our rules and privacy policy) |
