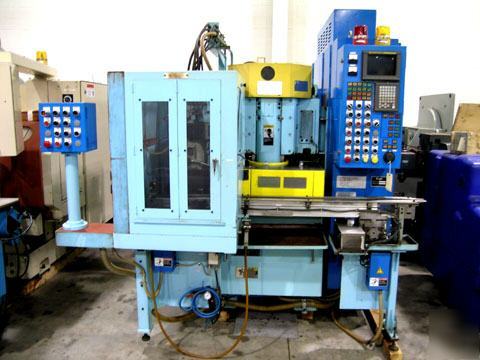

Liberty Machinery Company-You are looking at a No. KVD-300W, Koyo, (2) 12" Vert.Opposed 10HP Spindles, Fanuc Ctrl,Coolant-Serial No. 3V8452X08Condition - UsedNew - 1997-SPECIFICATIONS:Grinding Capacity - Outside Diameter 2" Grinding Wheel Dimensions 12" O.D. x 2" Thickness Grinding Wheel RPM 1,500 Minute -1 Grinding Wheel Peripheral Speed 4,690 Feet per Minute Wheel to Wheel Distance - Maximum 3" Carrier Speed Max. 4 Minutes -1 Upper & Lower Grinding Wheel Horsepower 10 HP Grinding Wheel In-Feed Motor 200W-AC Servo Carrier Motor AC Servo 600W-AC Servo Height from Floor to Centerline 40" Approximate Weight 10,000 Lbs. -EQUIPPED WITH:Fanuc Power Mate CNC Control Automatic Wheel Dressing System Grinding Wheel Variable Speed Inverter Feed System Consisting of: Vibratory Part Feeder (Workpiece Supply), Workpiece Receiving Pallet, Automatic Loading and Unloading Unit (Swing Arm Type), Exit Chute Part Take Off Conveyor and Accumulator. Bunri Combination Magnetic Drum / Paper Media Cutting Fluid Filtration System. Oil-Matic Automatic Cutting Fluid Temperature Regulator. -*Preliminary Specification Subject to Verification.-Click Pictures To Enlarge: (please look at our rules and privacy policy) |
