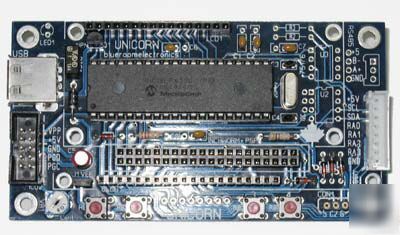

* MPLAB compatible USB upgrade for the Inchworm+ (simply snaps to the bottom of the Inchworm+) * Many times faster than the RS232 version of Inchworm * Uses your USB port for power 250ma max* to power itself, Inchworm+ and your target project. * For extra power use the Inchworm+ onboard power supply 1A max * Uses MPLAB firmware client driver Unicorn can transform in to a USB Experimenter... * 128x64 GLCD connector with backlight control * 2x16 LCD with backlight control * USB port for fast communications * I2C option with socket for 24LCxxx EEPROM * 4x4 keypad connector option * iButton / 1 Wire connector * ICD2 Inchworm connector for reprogramming & debugging * * Although USB can supply up to 500ma, 100ma is the maximum recommended. There is a 250ma self resetting thermal fuse on Unicorn. Here's the Unicorn Assembly Instructions at blueroomelectronics.com. This is an assembled kit; it includes all parts. (please look at our rules and privacy policy) |
