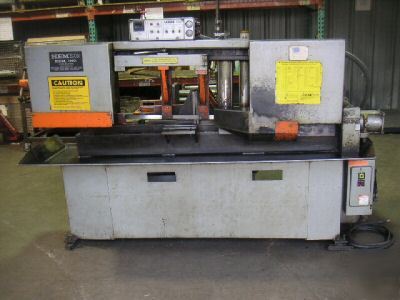

Cutting capacity: 12 3/4" Round, 12 3/4" Flat, 12" Square Blade size: 1"W x 12'10"L x 0.035"T Weight: 2500 lbs (approximately) Adjustable blade speed: 60-300 SFM Adjustable feed rate: 0-.500 in./sec Adjustable cutting pressure: 0- 400 lbs Automatic material feeder stroke: 0-24" Adjustable clamping pressure: 0-1700 lbs Drive Motor: 3HP 220 V. 3 phase. 1800 RPM, TEFC Machine dimensions: 96"W x 81"L x 51"T Mechanical digital readout on feed table Single index material feeder with shuttle vise Single stroke shuttle vise material feeder PhotobucketPhotobucketPhotobucketPhotobucketPhotobucketPhotobucketPhotobucket (please look at our rules and privacy policy) |
