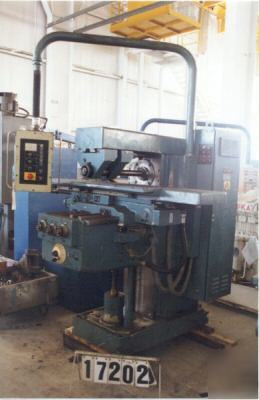

#FW375E SUPERMAX/HECKERT "HEAVY-DUTY" PLAIN New 1990, Serial No 240-85027-04-0527/12, Pendant Controls w/Push Button Control of 3-Axis Automatic Table Work Cycles w/Auto Rise & Fall of Knee Square Hardened Ways (Knee And Column) Automatic Hydraulic Backlash Eliminator Table Working Surface, W x L........... 15" x 63" Table Longitudinal Travel (X-Axis)..... 39" Saddle In-Out Cross Travel (Z-Axis).... 22" Knee Vertical Travel (Y-Axis).......... 20" Weight of Workpiece, Maximum........... 2250 LBS Spindle-Center to Table-Top, Minimum... 3" Spindle-Center to Table-Top, Maximum... 23" (18) Spindle Speeds, Range............. 45 to 2240 RPM (18) Longitudinal and Cross Feeds...... .63 to 31.5 IPM (18) Vertical Feeds, Range............. .19 to 10 IPM Power Rapid Traverse, Long & Cross..... 124 IPM Power Rapid Traverse, Vertical......... 40 IPM Spindle Motor, Horsepower.............. 8 HP Feed Motor, Horsepower................. 3 HP Weight, Approximately.................. 7000 LBS CONDITION: Appears to be in Very Good Condition. REPLACEMENT PRICE: is Approximately.. $49,750.00 PRICE: F.O.B. OUR WAREHOUSE........... $2,950.00 Note: SPINDLE IS LOCKED UP. SOMETHING IS MAJOR WRONG INSIDE All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
