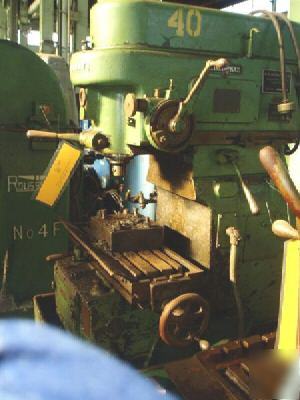

VERTICAL-SPINDLE PRODUCTION MILL New 1941, Serial No 4F1V1K-204, Model 0-8, Ltr EA, Table Dimensions (Overall) W x L....... 9" x 24.75" Table Working Surface, W x L........... 6" x 20" Table Longitudinal Travel (X-Axis)..... 8" Spindle-Carrier Cross Travel (Y-Axis).. 6" Vertical-Spindle to Table Top, Minimum. 4" Vertical-Spindle to Table Top, Maximum. 8" Table-Center to Column................. 8" (8) Spindle Speeds, Range.............. 150 to 1300 RPM (8) Longitudinal Table Feeds, Range.... 1/2 to 5.125 IPM Power Rapid Table Traverse............. 100 IPM Spindle Motor, Horsepower/RPM.......... 1 HP/1730 RPM Electrical System...................... 220-440/3/60 Floor Space Required, L x D............ 4'4" x 3'9" Weight, Approximately.................. 1700 LBS CONDITION: Appears to be in Good Condition. Machine was rebuilt by Do-Right Rebuilders in 1982. PRICE: F.O.B. OUR WAREHOUSE........... $1,950.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
g.hogan@modularparts.com (Gregory Hogan) for more information. This email will be sent to Gregory Hogan' actual email address.
