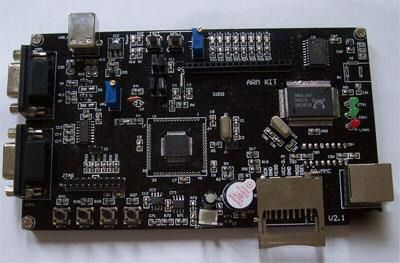

ARM7 KIT LPC214X Eval. Board (LPC214X/LPC213X) PHILIPSwith Ethernet ARM7 Kit (LPC214X) standard adopted the LPC2142 PHILIPS chips, is a cost-effective entry ARM7 learning plate. Dual serial ports, a USB2.0 interface, which can be accessed MMC card (for the U-Disk), a USB card (good quality), LCD12232/1602 LCD interface chip EEPROM memory AT24C16. LPC2142 parameters: maximum operating frequency of up to 60 MHz (compatible with LPC214X chips) which LPC2142 with 16 K RAM 64K FLASH 2 × UART 2 × I2C 1 × SPI 1 × SSP SB2.0 8-channel 10 - bit A / D 1 channel 10 - bit A / D. ISP online can be directly downloaded (a button automatically completed), this is the learning boards is a major distinguishing feature, the experimental board provided a wealth of LPC214X/LPC213X related routines, no one omission. Allows you to get started quickly, shorten the learning time to accelerate projects Development progress The board LPC213X/LPC214X compatible chip. * AD (thermistor temperature, adjustable potentiometer) * DA (USB soundcard) converter. * Liquid crystal display interface(LCD12232, LCD1602A). * USB2.0 interface, which can be accessed MMC card (U disk), for USB Audio Device (USB card). * 4 keys, eight LED lights, a buzzer. * Serial ISP (bootloader) download, JTAG debugging interface. * JTAG interface (for convenience we use simulation debugging, matching our Mini ARM JTAG Adapter) * Other functions (speaker output drivers - can directly access speaker). * ARM7 KIT LPC2142 Ethernet development board * CD-ROM (LPC2142 development environment and all the routines) (please look at our rules and privacy policy) |
