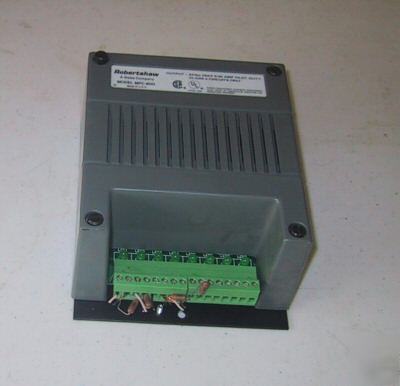

This unit is a Multi-Purpose Controller Digital Output Module. Made in U.S.A. Underwriters Laboratories. The digital output module (MPC-8DO) is an expansiion module that plugs directly into any of the four option slots available on the MicroSmart Multi-Purpose controller (MSC-MPC), providing additional digital outputs to the MSC-MPC. Designed for use in packaged-unit control and other HVAC applications, MPC-8DO provides eight solid-state outputs for start/stop/staging control, floating control, or pulse width modulation of ac-only loads. Eight triac controlled pilot duty 24 Vac only, 12VA, (0.5 amp max.) Unit measures 5''x6.25''. There is a set of instructions which will be sent with each item. Due to the fact that there's only one set per the many pieces I have available, the instructions will be a photocopy. Unfortunately we have no way of testing these, so are unable to report if they're in working order, but have no reason to think they wouldn't be. (please look at our rules and privacy policy) |
