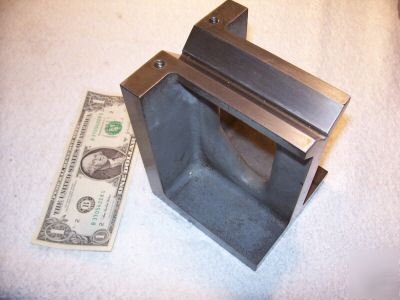

* The Knee measurements are: Length:4" Width:3 3/4" Height:5" Base Face:3/4" Angle Face:5/8" Web:5/8" Approx. Weight:7 lbs. The catalog price for the knee is $352.00 new. * The Taft-Peirce Catalog reads: "Because of the accurate squareness and parallelism of the Taft-Peirce Universal Right Angle Iron, work can be clamped to any face and the angle iron planed in any one of a number of positions, so that measurements may be made without relocating. the web in the center permits the angle iron to be set on any side or end, thereby providing a useful reference block for measuring and indicating large work. The larger sizes are ideally suited for use as reference surfaces in locating, setting up and machining large castings on planers and boring mills. Specifications: Universal Right Angle Irons are made of close-grained cast iron, thoroughly seasoned and carefully heat treated for maximum stability. Faces, sides, and ends are ground square and parallel to within .0002" on Nos. 9191-91-93 (within 0,00508 mm metric styles). Overall dimensions are held to approximate size only." * I have a variety of used quality Machinist Tools listed there. (please look at our rules and privacy policy) |
