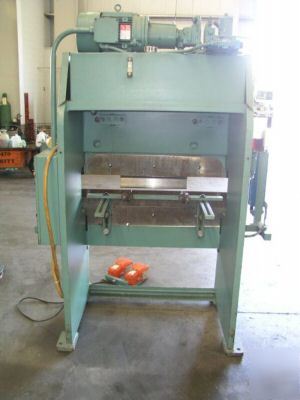

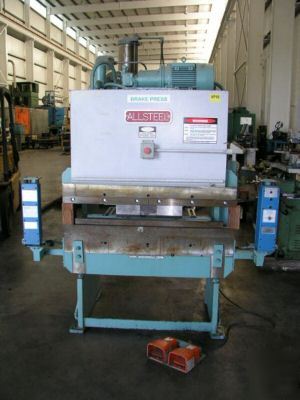

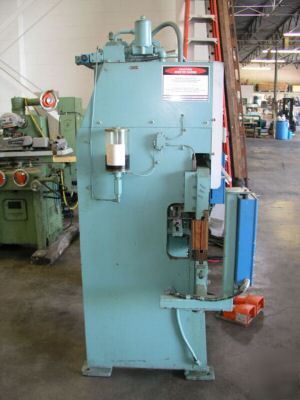

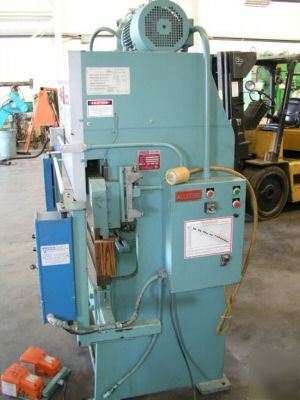

48" X 33 TON ALLSTEEL HYDRAULIC PRESS BRAKE Serial # CY-33303 Model # 33-4 Mfg. by Ferro Products Co., Montreal, Canada Bed Size: 2-3/8" Wide with 9/16" Wide x 3/4" Deep Female Slot Bed has (8) Set Screws Front & Rear for Die Alignment Emergency Stop Button on Machine Face Ram Adjustment is Via Bed Up & Down Bed Adjustment Wrench & Ram Clamp Bolt Wrench Adjustable Up & Lower Limit Stops with Micrometer Adjustment in Down Stop Cycles: Set - Jog - Run - Single Stroke Centerline of Bed to Frame: 7" Distance Between Frames: 37-3/4" Maximum Bed to Ram Down Adjustment: 8-5/8" Floor to Bed Adjustment Down: 32-1/2" 10 HP Vickers Hydraulic System 1720 RPM Motor, Wired 3 Phase, 60 Cycle, 230/460 Volts, 26/13 Amps Hydraulics & Motor are Built into the Top of the Machine Dual Electric Remote Foot Trip Pedal Manual Back Gauge with (2) Adjustment Material Stops Triad Lite Curtain Safety Controls, Serial # 193289, Model # TR-12-8K-20 Die Holder Rack with (3) Adjustable Arms Assorted Short Pieces of Die & Punches (4) 4' Dies Male V 90, (2) Female V's, (2) Flat Plane Bars, (3) Short Goose Neck Top Punches & (41) 3/4" Lower Small V Die Machine in Very Good Condition Overall Dimensions: 67" L-R x 36" F-B x 82" H (please look at our rules and privacy policy) |
