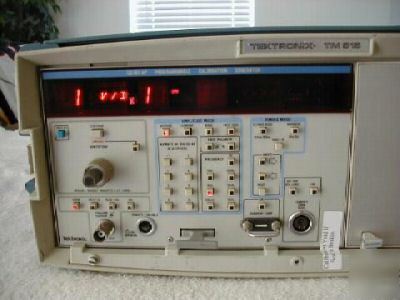

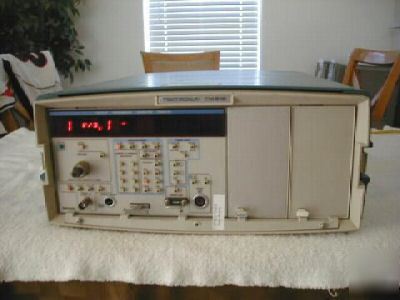

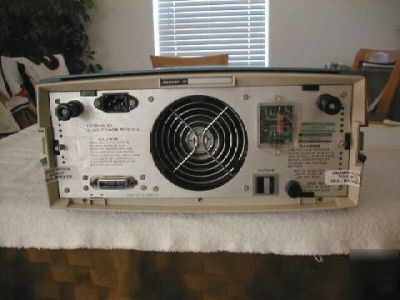

SOLD IN THE USA ONLY! SOLD IN THE USA ONLY! The TM515 POWER MODULE is the poratable carrying unit for the 500 series plug in modules. It has a tag that reads: Mod. UB?? It has a printer connection on back. The CG551AP Programmable Calibration Generator is a microprocessor based oscilloscope calibration generator that is fully programmable. It can be used as part of a computerized system for the calibration and verification of major oscilloscope parameters, including vertical gain, horizontal timing and gain, vertical bandwidth/pulse characteristics, probe accuracy and compensation, current probe accuracy and calibrator output accuracy. Many of the calibration and test steps previously performed by the operator can now be transferred to the computer which executes them in a consistent and error-free manner. The CG551AP is a TM 500 version of the CG 5001. SPECS: ***Parameters: vertical gain, horizontal timing and gain, vertical bandwidth/pulse characteristics, probe accuracy and compensation, current probe accuracy and calibrator output accuracy ***Voltage: 40 µV to 200 V, accuracy ±0.25% ±1 µV ***Markers: 10 ns to 5 s, accuracy ±0.01% ***Slewed Edge Timing: 0.4 ns to 100 ns ***Pulse Head Rise Time: = 200 ps ***100 Hz to 100 kHz frequency range ***100%, 20%, 2%, 0.2% distortion ranges *** REASONABLE offers are well come! SOLD IN USA ONLY! SOLD IN USA ONLY! SOLD IN USA ONLY! You get the Tektronix TM 515 power module, Tek. CG 551 AP calibrator generator plug in, Remote Variable manual, Comparator head, and power cord. NO covers, or Pulse heads. . This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html (please look at our rules and privacy policy) |
