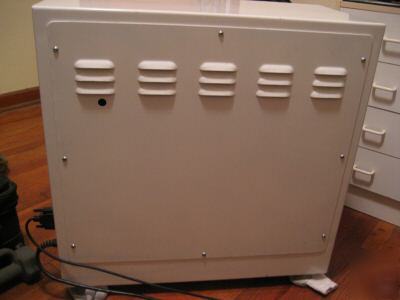

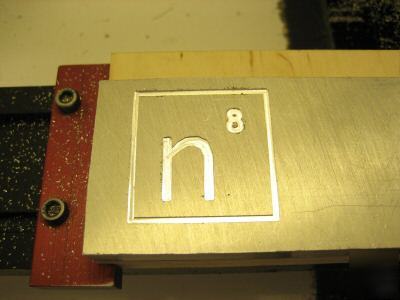

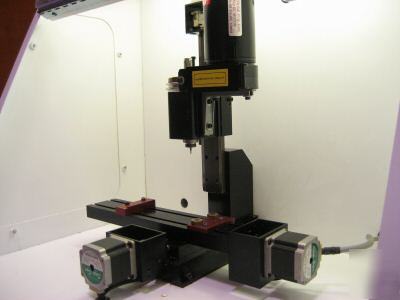

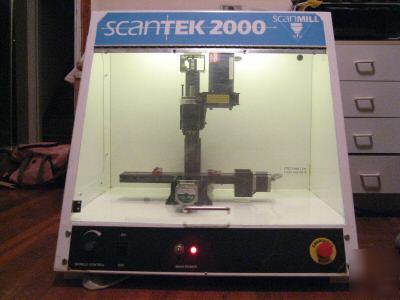

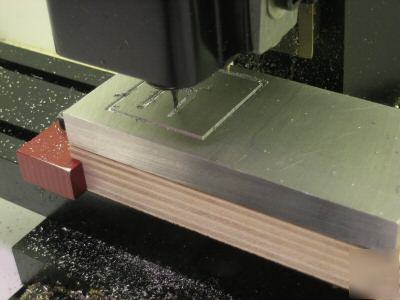

Gently used Sherline 5400 CNC milling machine. This machine is assembled by Denford; however, it is a sherline mill and uses Denford's software. I've used this for some engraving and small aluminum parts; and it works great! I am a woodworker and thought I might use it more, but I don't. So it has to go to make room for another fun tool! NO RESERVE!!!!!! Totally enclosed steel cabinet with plexiglass door Denford VR CNC Milling Software Very basic 2D engraving software included 1/8" collet with HSS engraving bit Stepper Motors on all three axes (200 steps/rev.) CNC controller is in back of steel cabinet behind louvered panel with a cooling fan (see pics) One end of cabinet is removable to allow for long work pieces Table to spindle .......... 8" Throat .................... 3.437" X axis travel ............... 9" Y axis travel ............... 5.125" Z axis travel ................ 6.5" Table size ................... 2.75" x 13.5" Hole through spindle .... 0.405" Spindle nose thread ..... 3/4" 16 TPI Spindle Taper .............. #1 Morse Max RPM ................... 2500 rpm Metal enclosure measures approx. 27"W x 26"D x 27"H One pictures show the machine milling a piece of aluminum just two days ago; and another is the completed piece. (please look at our rules and privacy policy) |
