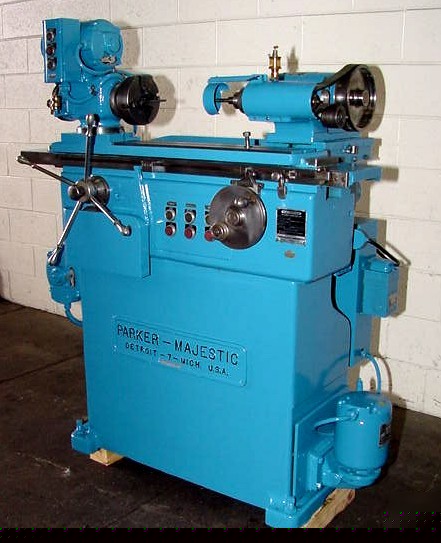

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Grinders, Hones, Finishing * Ovens, Furnaces & Environmental 10" ID GRINDER, Parker-Majestic A GOV'T SURPL 10" ID GRINDER, Parker-Majestic A GOV'T SURPL PARKER-MAJESTIC INTERNAL GRINDER MODEL: A S/N: 1387-53 NEW: 1953 SWING OVER TABLE........................ 10" TABLE TRAVEL (POWER FEED)............... 12" POWER TABLE SPEEDS (4) .......... 12", 24", 36" OR 48" IPM TABLE TRAVEL WITH RECIPROCATOR.......... 0 TO 3" (REVERSALS/MIN.)....................... 30, 50, 75 & 100 ANGLE SETTING OF TABLE (MAXIMUM)........ 5 DEGREES TABLE WORKING SURFACE................... 5" X 33- 1/2" SWIVEL OF WORK HEAD..................... 90 DEGREES HOLE THROUGHT WORK HEAD SHAFT........... 13/16" COLLET CAPACITY OF WORK HEAD............ 5/8" MAX. WORKHEAD SPINDLE SPEEDS ................ 175, 325, & 425 RPM TRAVEL OF CROSS SLIDE BY LEADSCREW ..... 2- 1/4" FULL RANGE OF CROSS SLIDE IS ........... 7" GRADUATIONS OF CROSS SLIDE HANDWHEEL ... 0.001" GRAD. OF HANDWHEEL VERNIER DIAL ........ 0.0001" FLOOR AREA............................. 32" X 62" APPROX. MACHINE WEIGHT ................ 1,900 LBS. PARKER-MAJESTIC I.D. SPINDLE, MODEL 19-AL (S/N: 26690). 25,000 RPM ..... SPINDLE IS 11" LONG x 3" DIAMETER. ARBOR WITH SPINDLE IS 3/8" DIAMETER x 1- 3/4" LONG. POWER FEED - THIS FEED IS MOST USEFUL FOR TABLE STROKES RECIPROCATOR ACTUATED BY MEANS OF A LEVER. FOR STROKES 0 TO 3" AT 30, 50, 75 OR 100 PER MINUTE MICRO ADJUSTMENT OF CROSS FEED (.0001" GRAD.) "WESCOTT" 6" DIAMETER 4-JAW CHUCK w/INDEPENDENTLY COOLANT CAN BE FED THRU WORKHEAD SPINDLE OR OVER ELECTRIC CABINET MOUNTED ON REAR OF MACHINE MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS ** GOVERNMENT SURPLUS MACHINE - FROM STANDBY STORAGE ** ** TRULY SUPERB CONDITION & APPEARANCE ** ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE ** Machine Location: HARRISON, NJ Click Here For More Parker-Majestic Machines Click Here For More Grinders, Lappers & Hones - ID / INTERNAL GRINDERS(s) Call Andy at (***) 873-6224 ext 7600 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. (please look at our rules and privacy policy) |
