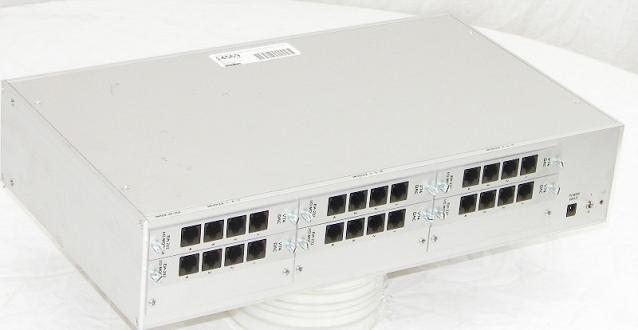

BAYTECH M9 DAC DATA AQUISITION CONTROL 9 SLOT click on images below to enlarge The M9 DAC (Data Acquisition/Control) system has 9 plug-in module slots. This one has 6 - V74 DAC modules installed. It does not come with a power supply, but it does power on. The service port or optional service modem can be used for configuration, remote configuration and diagnostics. Housed in a 425 * 254 * 81 mm chassis, the M 9 DAC will fit into two standard panel units of a 19" rack. 9 Plug-in module slots. Desk top or 19" rack mount compatibility. Service Ports: RJ-45:EIA-232 Fixed configuration: 9600 baud, 8 bit word, no parity and one stop bit. RJ-11: Modem (2400 bps).(Option) Remote ring detect unit reset. Time of day: Year/month/day/hour/minute/second/milli sec. Configuration: From service port or host module. Software: On board. Non-volatile memory. Indicators: 1 green: Power-up. 1 red: Activity: for each port. Power: Voltage: 14-18 VAC, 12-24 VDC. 0,60 A Max. 220 V - 50 Hz. Wall adapter. Dimensions: 425 * 254 * 88 mm. Weight 3, 5 k. Environment: Operating temperature range: 0 to 70 °C. Humidity: 5 to 95 % RH. * We offer a 100% Satisfaction Guarantee that the item is as described! * Questions will be answered to the best of our knowledge * PERSONAL CHECKS ARE NOT ACCEPTABLE. * Items can only be returned with prior authorization. Unauthorized returns will not be honored. * Failure to follow these guidelines will invalidate both the return and the guarantee! (please look at our rules and privacy policy) |
