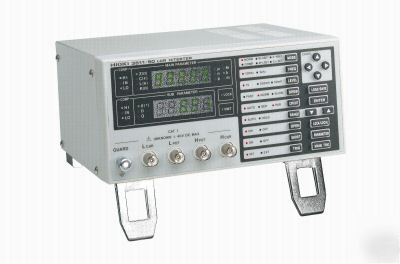

"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment" *Hioki 3511-50 LCR HiTester -HTI * Compact & Powerful dedicated LCR measurement in 5 milli-second timeframes High speed measurement: 5 ms (1 kHz) or 13 ms (120 Hz) High precision accuracy: ± 0.08 % Measurement parameters |Z|, phase angle, C, L, D, Q, R Measurement method Source: constant voltage 50 mV to 1 V rms (AC) Source frequency 120 Hz or 1 kHz Measurement ranges |Z|, R: 10 m-Ohm to 200.00 m-ohm (depending on condition), phase angle: -90.00 to +90.00 °, C: 0.940 pF to 999.99 mF, L: 1.600 µH to 200.00 kH, D: 0.0001 to 1.9900, Q: 0.85 to 999.99 Basic accuracy |Z|: ±0.08 % rdg. , phase angle: ±0.05 ° Measurement times Fast: 5 msec. to Slow: 300 msec. (at 1 kHz) Fast: 13 msec. to Slow: 400 msec. (at 120 Hz) Display 99999 full digits, LED Comparator functions Setting: Upper and lower limit, absolute value, Output: 3 levels (Hi, In, Lo), Open-collector, Isolated External printer 9442 (use with the 9443-02 or -03/9444) Power supply 100 to 240 V AC (selectable type), 50/60Hz Dimensions, mass 210 mm(8.27 in)W × 100 mm(3.94 in)H × 168 mm(6.61 in)D, 2.5 kg (88.2 oz) Accessories Power cord(1), Fuse(1) GOODS: ALL our items are FACTORY NEW (please look at our rules and privacy policy) |
