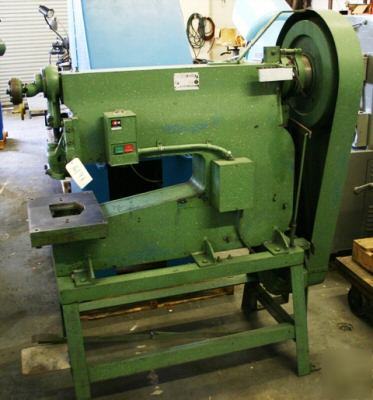

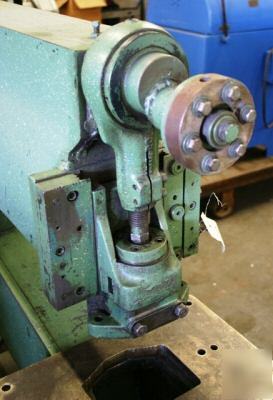

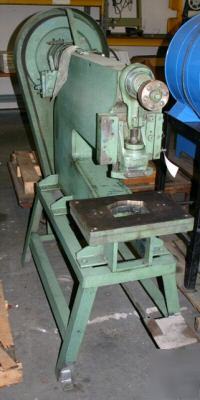

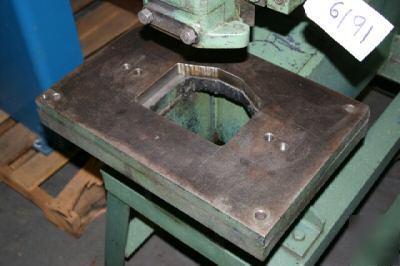

WHITNEY JENSEN PUNCH – ADJUST-O-RAM Diameter of punch shank hole in ram 1 9/16" Depth of punch shank hole in ram 2" Bolster plate dimensions 1" x 12" x 18" Slug hole clearance 4" round or 3 1/2" x 6" Bolster plate holes, center to center 10 1/2" Diameter and width of flywheel 20" x 4" Motor 1 hp 1200 rpm, 220/440V 3 ph The Adjusto-Ram clutch permits the operator to lower the punch to a predetermined point while the punch press is running. When the work is property positioned, the operator trips the press and the punching operation is completed. As the clutch partially isolates the crank shaft from the clutch hub, 2 brakes are required to control the normal override of the two rotating members. The punch always returns to normal position following the punching cycle. Can be used in the conventional manner also. Price, FOB Port Orange Fl....................... $1,950.00 Call or email for freight quotes. (please look at our rules and privacy policy) |
