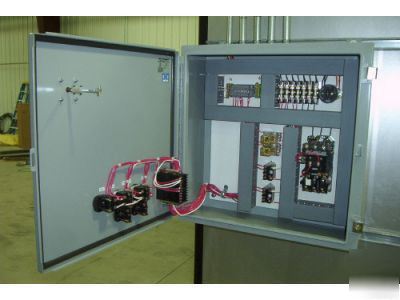

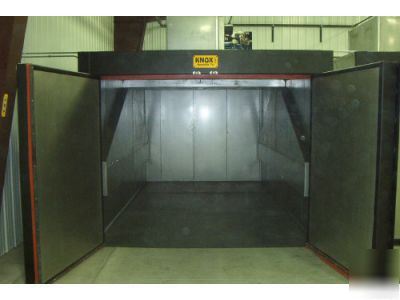

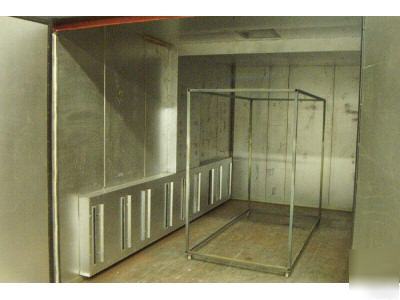

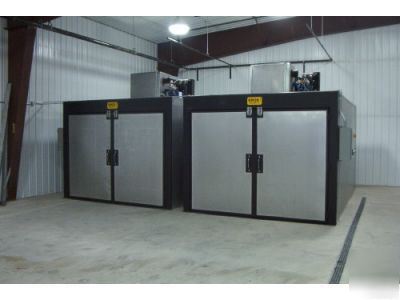

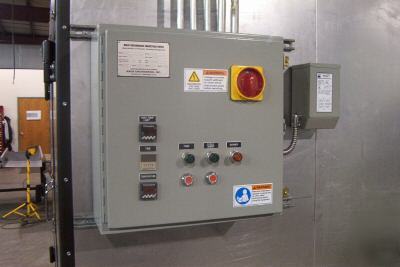

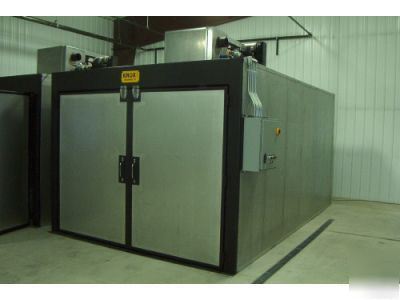

Brand New 500 Degree Powder Coating Curing Oven by Knox Engineering: Approx. CLEAR Inside Dimensions: 8'W x 8'H x 16'D. Burner box to be located on top of unit (other locations optional). Approximate overall height of unit: 12'-2" 1. Aluminized 6" panels on ceiling and walls with 4# density mineral wool insulation. 2. AFC 18" Plug Fan, single phase, 220v, 7500 CFM. 3. Exhaust Blower, single phase, 220v, 500 CFM. 4. 800,000 BTU Maxon Ovenpak Burner with UL/FM gastrain. 5. Fully modulated temperature control system with cycle timer, end of cycle alarm, and safety interlocks on exhaust and recirculation blowers. 6. Heavy Duty insulated double door system (3/16" frames) with safety latches (on one end of oven only). 7. STANDARD 11 gauge floor (non-insulated). 9. Firebox made of 3/16" plate steel. 11. Meets and/or exceeds NFPA 86 Standard for Class 1 Industrial Ovens. Following are available options: Side wall ductwork (shown in pictures). Different door configurations. Other sizes are available. Please visit or email Darlene-Wallace@modularparts.com for more information. (please look at our rules and privacy policy) |
