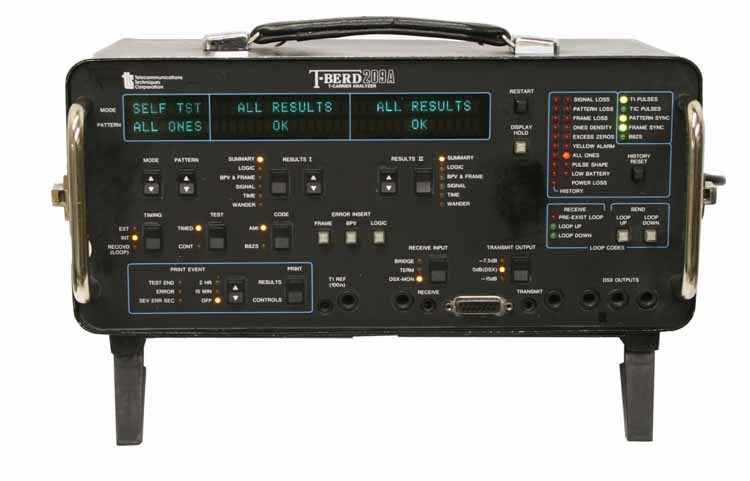

TTC T-Berd 209A T-Carrier Analyzer T1 Network Tester TTC T-BERD 209A T-Carrier Analyzer Sometimes it makes sense to follow the crowd. When you need to test T1, you need a T-BERD-the tool whose name is synonymous with T1 testing. * Identifies jitter; performs both highband and wideband measurements, and pinpoints multiplexer and channel bank clock problems (T-BERD 211 only) * Auto configuration and results summary provide immediate identification of framing, pattern, and error status * Includes automated and user-configurable stress pattern testing * Performs G.821, B8ZS, and Fractional T1 error analysis * Measures and analyzes pulse shape * Brightly lit front panel display is ideally suited for low light testing environments * Lead acid battery (T-BERD 209A) enables technician to test anywhere for up to five hours without power generators or cords * Repeater Power Supply, T1 Repeater Extender, and Thermal Graphics Printer economically add versatility to the TB209A/211 The T-BERD 209A/211 is a complete test and measurement solution for technicans who install, test, monitor, and maintain T1 links and equipment. The T-BERD 209A/211 can be optioned to perform the following tasks: * Verify proper circuit operation from point to point * Ensure that loopback equipment responds to designated loopcodes * Test equipment under different traffic conditions using built-in fixed and pseudorandom test patterns Circuit Maintenance and Problem Isolation * Monitor the circuit for intermittent problems that may become more serious over time * Avoid the expense of taking the circuit out of service * Analyze live traffic without introducing any disturbances on the line * Identify and locate cable pair faults including shorts, bridge taps, load coils, and other line impairments Out-of-Service Troubleshooting * Stress and analyze the network with point-to-point and loopback testing Information that technicians need to ensure optimum T1 performance is readily obtained, quantified, and qualified by the T-BERD's comprehensive testing and reporting options. Jitter Alarm and Trigger (T-BERD 211 only)-Front panel indicator provides fast identification of jitter problems; jitter measurements across the full 10 Hz to 40 kHz range facilitate isolation of multiplexer and channel bank clock recovery problems. Received Signal Level Measurements-Analyze signal strength to diagnose transmission problems caused by high/low signal levels. G.821 Measurements-Perform error analysis per G.821 specification standards to verify circuit quality. Capture data including unavailable seconds, percent availability, degraded minutes, percent degraded minutes, severely errored seconds, percent severely errored seconds. Stress Pattern Testing-Generate a full suite of patterns to rapidly locate and isolate line problems. Patterns include: * Automated Multipattern Tests Detect elusive bridge taps using automated BRIDGTAP sequence and perform qualification tests with the user-configurable MULTIPAT® sequence Stress repeater ALBO circuits with 55 OCTET, T1 DALY, and other long user test patterns Identify circuits not configured for or incompatible with B8ZS data * Intelligent Repeater Loopcodes Loop up and loop down individual addressable office repeaters and line repeators, or transmit maintenance switch commands ESF Testing-Emulate and loop back network devices that accept either in-band or ESF out-of-band (data link) loopback codes with ESF framing. Decode ESF PRMs to confirm data link operation and network performance. Emulate ANSI T1.403 compatible CSU equipment during circuit installation and qualification. Performance Monitor NIU-SMARTNIU mode queries the Performance Monitor portion of combined NIU/Performance Monitor equipment for the recorded T1 span statistics, sets the Performance Monitor NIU clock to match the T-BERD's, and clears NIU performance results. B8ZS Detection-Quickly identify B8ZS encoded data via front panel indicator. Fractional T1 Analysis-Perform bit error rate tests on selected channels to verify contiguous and non-contiguous bandwidth and route quality on FT1 circuits. +6.0 to -6.0; 0.1 dB resolution -6.0 to -40.0; 0.5 dB resolution 1 Hz resolution; 5 ppm accuracy Pulse Amplitude: 10.0 Vp-p (nominal) Pulse Frequency: 11.718 kHz (nominal) Measurement Range: 100 to 10,000 ft Jitter Measurement (T-BERD 211 only) Wideband: 32 UI, 10 Hz to 40 kHz Highband: 32 UI, 8 kHz to 40 kHz Spectral Analysis: 32 UI, 10 Hz to 40 kHz Jitter Masks (T-BERD 211 only) Operating Time: 5 hours (nominal) Charging Time: 8 hours (nominal) Operating temperature: 32° to 109.8° F Power up and troubleshoot spans with the Repeater Power Supply and T1 Repeater Extender during span installation and maintenance. Monitor channels and signaling bits with the T1 Channel Monitor. Document your test results with the Thermal Graphics Printer. T-BERD T-Carrier Analyzer Package T-BERD T-Carrier Analyzer Package (includes G.821, battery, and LUP) T-BERD T-Carrier Analyzer Package (includes G.821, battery, LUP, Enhanced ESF, and Fractional T1) T-BERD T-Carrier Analyzer Package (includes G.821, battery, LUP, Enhanced ESF, FT1, and TDR) T-BERD T-Carrier Analyzer Package (includes G.821 and Spectral Analysis) T-BERD T-Carrier Analyzer Package (includes G.821, Spectral Analysis, and LUP) T-BERD T-Carrier Analyzer Package (includes G.821, Spectral Analysis, LUP, Enhanced ESF, and FT1) T-BERD T-Carrier Analyzer Package (includes G.821, Spectral Analysis, LUP, Enhanced ESF, FT1 and TDR) Lid Options and Selected Accessories External Power Supply for Model No. 209A/211-96 Thermal Graphics Printer with Carrying Case If you require more detailed specifications, please contact the manufacturer for technical support. (Worldwide including Hawaii, Alaska, Canada) This warranty excludes consumable goods. Consumable goods are not guaranteed to come with the item unless otherwise noted in the item description. Consumable goods includes: toner, ink cartridges, bulbs, and batteries. All California residents will be charged CA sales tax during the Checkout process. Please click on the links below for answers frequently asked questions about that category. Questions? Check out our Frequently Asked Questions page for detailed answers. Request for return merchandise authorization (RMA) Call us. (Monday-Friday 10AM-6PM PST) Mailing address for money orders and checks Tel: (***) 757-3863 (Toll Free) (please look at our rules and privacy policy) |
