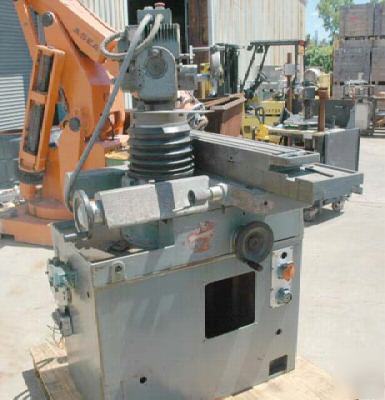

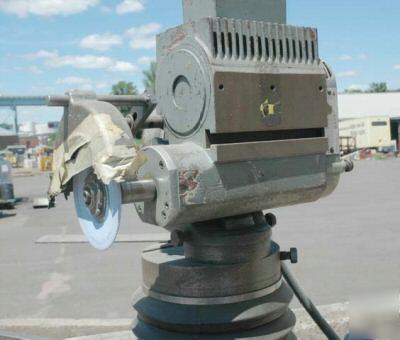

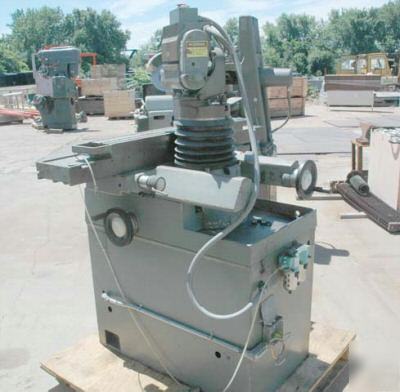

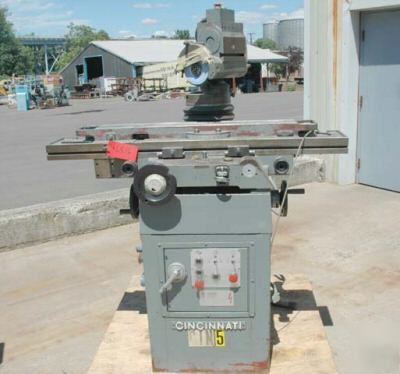

Cincinnati No. 2 Type MT tool Grinder 460 volts, 3 phase, 60 cycles Catalogue Specifications subject to verification and correction. The Cincinnati Monoset Cutter and Tool Grinder is a precision machine tool that is used for sharpening, reconditioning and generating certain types of cutting tools. The Monoset Machine can grind straight, tapered and curved surfaces including helical leads; it can grind externally as well as internally; can grind convex and concave radii; and produce a complete new cutter from solid stock. Standard Specifications from Catalogue Workhead Swing over main slide max. dia. 12 inch Workhead Collet hole max. dia 1.25 inch Grinding wheel max. dia. 4 inch Distance between workhead spindle nose and tail center max. length 6 inch Lead generated by lead Mechanism min. 1.81 inch Workhead, longitudinal slide Movement 5.75 inch Workhead offset(cross slide movement 5.25 inch Workhead, turntable swivel max. 235 deg. Workhead, vertical tilt 80 deg. Above and below center 40 deg. Workhead, spindle rotation 360 deg. Wheelhead longitudinal slide movement 6 inch Wheelhead, transverse (Cross slide movement 7.50 inch Wheelhead, vertical movement 9.50 inch Allowable variations of speeds, with spindle +0% running freely and under no load -8% Workhead spindle 1 speed of 436 rpm Wheelhead spindle 3 speeds of 4000 rpm, 5729 rpm, 8000 rpm. * All items are subject to prior sale. All items are sold "AS - IS, Where - IS" and with all faults. Items are described to the best of our knowledge, however, We (Mikekandu and/or the Seller) make no guarantees regarding accuracy, errors or omissions in item descriptions and make no warranty, express or implied as to the nature, quality, value or condition of any item. We expressly disclaim any warranty of merchantability or fitness for a particular purpose of any item. For more information read our Frequently Asked Questions page. (please look at our rules and privacy policy) |
