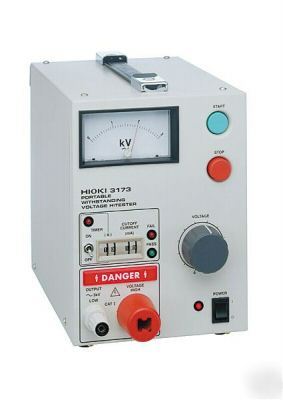

"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment" * Hioki 3173 Withstanding Voltage HiTester -HTI* Economical and Simple way to Handle Withstand Voltage Testing Compact, Lightweight and Easy-to-Use Timer Function ( Setting range: 1 to 99 seconds ) Output voltage range 0 to 3 kV AC (single range) Frequency Synchronized to power Basic specifications : [ Current detector ] Current cut-off setting range 0.1 to 9.9 mA, resolution of 0.1 mA with digital switching Current cut-off accuracy Setting value ±(5%+0.05mA) Evaluation method Using an analog comparator PASS, FAIL Outputs a buzzer sound and external I/O for each evaluation result Basic specifications : [ Timer area ] Setting range 1 to 99 sec (1-second resolution) or continuous (timer OFF) Timer accuracy Setting value ±(1%+50msec) EXT I/O signal START and STOP, PASS and FAIL, TEST 120 V AC (3173-01), 220 V AC (3173-02) 230 V AC (3173-03), 240 V AC (3173-04) Dimensions, Mass Approx. 149 (W) × 200 (H) × 215 (D) mm Approx. 7.0 kg (for 120 to 240 V AC) Supplied accessories Power cord, spare fuse, H.V. TEST LEAD 9615 (1 GOODS: ALL our items are FACTORY NEW (please look at our rules and privacy policy) |
