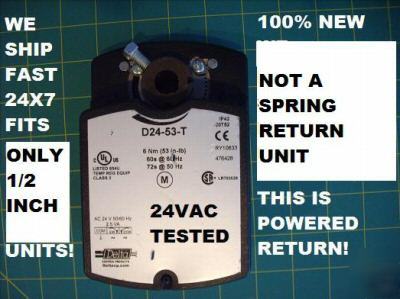

D24-53-T TRISTATE DAMPER ACTUATOR (NOT SPRING RETURN REQUIRES POWER TO REVERSE AND SHOULD HAVE LIMIT SWITCHES TO REDUCE MOTOR RUN TIMES) THESE RANGE IN COST $150 to $172 for total unit. THIS IS 100% NEW ...NO BOX REMOVED FROM NEW UNIT AND SPRING RETURN UNIT INSTALLED. Only date code I could find was July 06 so I put it on the test bench and ran it back and forth several times...no problems found. CYCLE TIME WAS TO SPEC 60 EACH WAY AND GEARS ARE SPOTLESS/NEW! Just been sitting needing a home! GENERAL SPECS FROM WEB...PLEASE CHECK YOUR APPLICATIONS!! Power Supply Operating Voltage 20 to 30 VAC at 50/60 Hz Control Signal Input Signal 20 to 30 VAC at 50/60 Hz Adjustments CW and COM Terminals, CW rotation CCW and COM Terminals, Input Impedance 200 Ohms, nominal Run time for 90° of Rotation Nominal 60 seconds at 60 Hz and 72 seconds at 50 Hz for 90° Rotation Range Adjustable from 30 to 90°, CW or CCW Mounting Shaft Size 3/8 to 1/2 in. (10 to 12.7 mm) Round Shaft or 3/8 in. Square Shaft Manual Override External Push Button (LOCATED ON SIDE OF UNIT) Ambient Conditions Ambient Temperature Operating -4 to 125°F (-20 to 52°C); 90% RH maximum, Non-Condensing Storage -40 to 176°F (-40 to 80°C); 90% RH maximum, Non-Condensing Agency Certification UL 873 Listed, File E27734, CCN XAPX CSA C22.2 No. 139 Certified, File LR85083, Class 3221 02 CE Mark, EMC Directive 89/336/EEC Life Cycle 100,000 full cycles; 2,500,000 repositions rated at 53 lb·in (6 N·m) Noise Rating 35 dBA maximum at 1 meter Dimensions 5.9†(L) x 4.2†(W) x 2.64†(H) NOTE: To avoid excessive wear or drive time on the motor, use a controller and/or software that provides a time-out function to remove the signal at the end of rotation (stall). THIS HAS BEEN HERE FOR A WHILE AND LIGHTLY SCRATCHED BUT IT IS NEW. UL CLASS 2 RECOGNIZED.... BECAUSE IT IS ELECTRICAL ONLY GUARANTEE NOT DOA. SOMEONE CAN USE THIS WE WILL BOTH BE HAPPY! FREE PRIORITY MAIL ON THIS ITEM. BUT WE WANT YOU HAPPY IF YOU HAVE ANY PROBLEMS WITH DESCRIPTIONS OR CONTENT OF THIS AD VS PRODUCT CONTACT US. WE BELIEVE THAT THERE SHOULD NOT BE ANY PROBLEMS WITH THIS ITEM. THANKS! OUR MOTTO: YOU WAIT ON THE MAILMAN NOT US! THANK YOU VERY MUCH FOR CHECKING OUT OUR SALE! WE WANT YOU TO BE HAPPY WITH YOUR PURCHASE!!!!! ITEM #0001200110007 LOCATION ROW 5 SHELF #4 (please look at our rules and privacy policy) |
