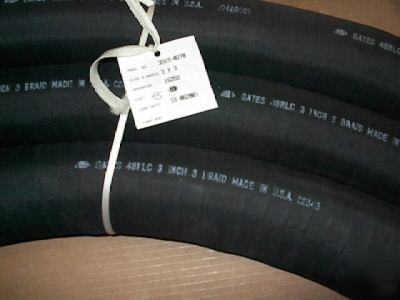

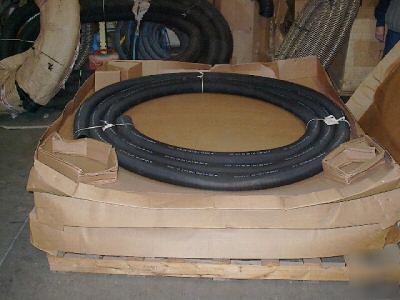

GATES RLC 3 FIBER BRAID RETURN LINE AND LOW PRESSURE HOSE 3" ID 150PSI #3319-0270 RECOMMENDED FOR: PETROLEUM-BASE HYDRAULIC OILS, GLYCOL-ANTIFREEZE, AIR OR WATER IN LOW PRESSURE FLUID TRANSFER OR HYDRAULIC SYSTEM RETURN LINES. GENERALLY CONNECTED TO 100R4 STEMS, BEADED NIPPLES, OR TUBE TYPE PORTS WITH WORM GEAR CLAMPS. TEMPERATURE RANGE: FOR HYDRAULIC OIL LINES -40F TO +275F (-40C TO +135C) CONSTANT AND +300F(+149C) INTERMITTENT (UP TO 10% OF OPERATING TIME); AIR- TO +160F (+71C) ONLY. WATER AND WATER EMULSIONS- +225F (107C) FOR A PRESSURE LINE/// +180F (82C) FOR A RETURN LINE. CONSTRUCTION: TUBE: TYPE C (MODIFIED NITRILE) BLACK, OIL AND ABRASION RESISTANT. REINFORCEMENT: THREE (3) FIBER BRAIDS. SPECS: ID- 3", OD- 3.62", WORKING PRESSURE-150PSI, SUCTION/VACCUM- 25IN.HG, MINIMUM BEND RADIUS- 20", MINIMUM BURST PRESSURE- 600PSI, WEIGHT PER FOOT- 2.28LBS RECOMMENDED COUPLINGS:USE BARBED STEM OR BEADED-TUBE WITH CLAMPS.(NOT INCLUDED) AGENCY SPECS: SOCIETY OF AUTOMOTIVE ENGINEERS 30R2 TYPE 1 AND TYPE 2. INDUSTRY SPECS: SAE 30R2 TYPE 1 AND SAE 30R2 TYPE 2 WE HAVE 3 PIECES OF THIS, 1 IS 45 FT AND 2 ARE 50FT. THIS HOSE ROUTINELY SELLS FOR OVER $30.00 A FOOT! (YES, YOU READ THAT RIGHT, SEARCH THE WEB AND YOU'LL SEE) THIS IS LESS THAN 5.80 A FOOT! ONE ROLL OF 50FT WEIGHS 114PDS, DUE TO SIZE A FREIGHT TRUCK IS SUGGESTED YOU WILL NOT FIND THIS CHEAPER ANYWHERE FOR NEW GATES HOSE! MADE IN USA NOT CHEAP IMPORT TRASH! Please call or email us with any questions. ~The Superstore of hose and fittings!~ Industries that we serve include: Suction hose, marine hose, gas hose, hose clamps, gates hose, hose fitting, hose clamp, pressure washer hose, pressure hose, air hose, irrigation hose, fuel hose, parker hose, pcv hose, hydraulic hoses, hose nozzle, exhaust hose, hydraulic hose, air hoses, goodyear hose, silicone hose, hose fittings, air hose fittings, pvc hose, discharge hose, coil hose, flexible hose, hose nozzles, vacuum hose, hose couplings, braided hose, washer hose, hose connectors, fire hose, duct hose, vent hose, layflat hose, etc-etc-etc. (please look at our rules and privacy policy) |
