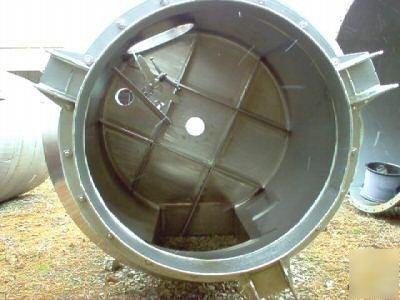

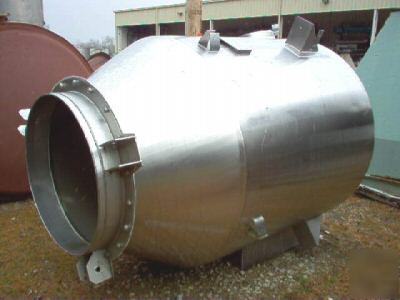

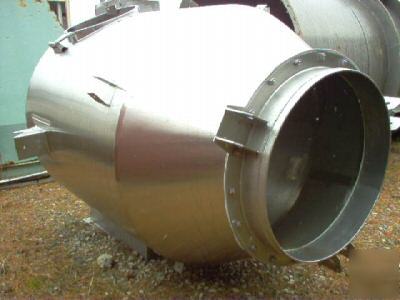

POLISHED STAINLESS STEEL. FOOD GRADE TYPE DESIGN. SERIAL # 9269. DESIGN PRESSURE IS 5" WC VAC, 3.0 PSIG DESIGN TEMP. IS 250°F. 114 CUBIC FEET OF CAPACITY. P.O. # 35890-0801-0802. 24" FLANGED INLET. RECTANGULAR SIDE FLANGED OUTLET IS 40.5" X 28.5". 2-6" INLETS ON TOP AND A 36" FLANGED OPENING ON BOTTOM. 56" STRAIGHT SIDE WITH A 24" HIGH CONE AT 60°. BOTTOM CONNECTION IS FOR A 36" DIAMETER BIN ACTIVATOR. WE HAVE THE BIN ACTIVATOR AVAILABLE ALSO IF NEEDED. OUR ITEM #595 FOR THE BIN ACTIVATOR. BUILT BY WESTFIELD, KENILWORTH, NJ.
