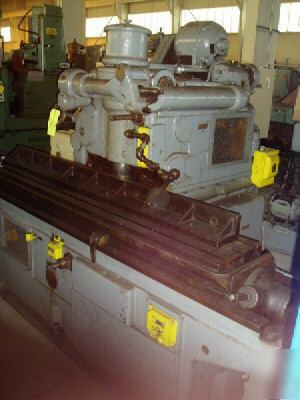

New 1943, Serial No. 24076, Model 3-60 Main Saddle w/"Relieving-Type" Cutter-Spindle Straight Spur Guide For Cutter Spindle Selector Switch For One Or Two-Cut Operation One Set-Up Of Feed & Speed Change Gears One (1) Table Mounted Rack Holding Fixture w/Clamps Self Contained Coolant System Pump & Piping Operator's Manual, Parts List, Wiring Diagram Maximum Length Of Rack Cut............. 60"/(1524mm) Maximum Face-Width Of Rack Teeth....... 3"/(76.2mm) Cutter Spindle Diameter ………………………………….. 4.5"/(114.3mm) Max Diametral Pitch (Module) Spur Gears 4 DP/(Module 6) Max PD Of Shaper Cutter (Approx.)...... 5"/(127mm) Maximum Table Traverse................. 79.37"/(2016mm) Min Traverse Pos, End Of Work-Table Relative To Centerline Of Cutter-Spdl........... 3.125"/(79.38mm) Maximum Distance, Work-Table Surface To Bottom Face Of Cutter-Spdl In Upper-Most Pos.. 6.5"8(165.1mm) Max./Min. Distance, Centerline Of Cutter-Spindle To Work-Table.......................... 4"/1"/(101.6/25.4mm) Work-Table Surface..................... 82.75"x 12"/(2102x305mm) Machine Dimensions..................... 106x82x78"/(2692x2083x1981mm) Machine Net Weight (Approx.)........... 11,000 Lbs./(5000 kG) NOTES: Suitable For The Cutting Of Straight Spur Racks,(& Helical Racks w/Proper Guides), Up To 60" (1524mm) In Length, 4 DP (Module 6), With A Maximum Face-Width Of 3" (76.2mm) PRICE: F.O.B. OUR WAREHOUSE........... $19,500.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
