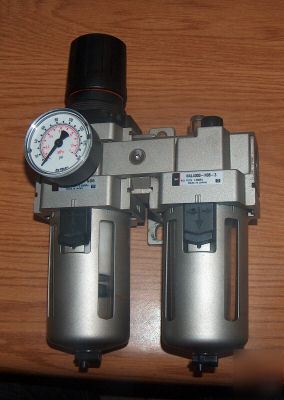

AIRLINE EQUIPMENT - FILTER REGULATOR MODULAR *LQATechnical Model NAW1000 NAW2000 NAW3000 NAW4000 NAW4000-N06 Port Size NPT M5x0.8 1/8 • 1/41/4 • 3/81/4• 3/8• 1/2 3/4 Proof pressure psig (MPa) 220 (1.5) Max. oper. pressure psig (MPa) 150 (1.0) Port size presure gauge 1/16Rc(PT)1/8 NPT 1/8 NPT 1/4 NPT 1/4 NPT Ambient and fluid temperature 23ï‚°ï€ ~140ï‚°ï€ F (-5ï‚°ï€ ~ 60ï‚°ï€ C) Bowl capacity ozs. (cm3) .08 (2.5) .27 (8) .78 (23) 1.52 (45) 1.52 (45) Construction/regulator Relieving Type 0.20(0.09) 0.79 (0.36) 1.17 (0.53) 2.40 (1.09) 2.54 (1.15) AIRLINE EQUIPMENT - LUBRICATOR MODULAR *LQA Port Size NPT 10-32 NOM. (M5)1/8 • 1/4 1/4 • 3/8 1/4 • 3/8 • 1/2 3/4 3/4•1 1 Proof pressure psig (MPa) 220 (1.5) Max. oper. pressure psig (MPa) 150 (1.0) Min. oper. flow scfm* 0.14 0.53 1/4: 1.06 Bowl capacity ozs. (cm3) 0.24 (7) 0.85 (25) 1.70 (50) 4.40 (130) 4.40 (130) 4.40 (130) 4.40 (130) Recommended oil Turbine Oil #1, ISO VG32 Ambient and media temperature 23ï‚°ï€ ~ 140ï‚°ï€ F (-5ï‚°ï€ ~ 60ï‚°ï€ C) Weight lbs. (Kgf) 0.15 (0.07)0.49 (0.22) 0.66 (0.28) 1.23 (0.52) 1.28 (0.58) 2.38 (1.08) 2.60 (1.19) We are NOT responsible for the consequences or damages arised due to any malfunction, defect or produced harm originated by this item, that is the manufacturer´s exclusively liability, if you accept the purchase , you agree to the aforesaid. (please look at our rules and privacy policy) |
