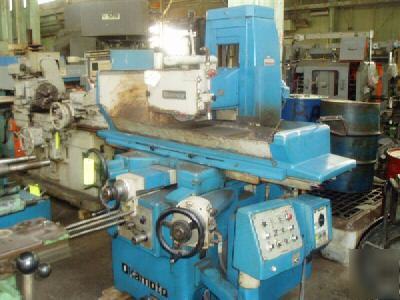

HORIZONTAL-SPINDLE SURFACE GRINDER New 1988, Serial No 7513, Model 124N, Series ACCUGAR 12" x 24" Walker Electro-Magnetic Chuck Automatic Incremental Power Down Feed Wheelhead Mounted Wheel Dresser Automatic Grinding Cycle - Power Head Elevation Automatic Cross Feed Reversal - Coolant System Table Working Surface, W x L........... 12" x 24" Grinding Width Capacity, Maximum....... 12" Grinding Length Capacity, Maximum...... 24" Height Under 12" Grinding Wheel........ 13.7" Table Longitudinal Travel.............. 29.5" Table Cross Travel..................... 13.4" Table Longitudinal Feeds, Range........ 1 to 100 FPM Table Cross In-Feeds, Range............ .02 to .8 IPR Spindle Vertical Feeds, Range.......... .0001 to .0015 IPR Power Rapid Vertical Traverse.......... 19 IPM Grinding Wheel Spindle Motor........... 5 HP/1730 RPM Hydraulic System Motor................. 2 HP Power Elevation Motor.................. 1/2 HP Electrical System...................... 230-460/3/60 Floor Space Required, L x D............ 8'7" x 6'2" Overall Height......................... 6'1" Weight, Approximately.................. 4900 LBS PRICE: BEFORE REMOVAL.................. $12,500.00 All machines/equipment subject to prior sale. (please look at our rules and privacy policy) |
