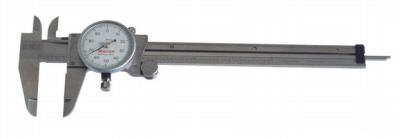

The Only American Made Dial Caliper ... This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable and accurate. Sharp, clear dial graduations of .001" or 0.02mm – .100" or 2mm in one revolution Sharp, black graduations on the satin finished bar, every .100" or 1mm Choice of black, red or white inch dials; millimeter dials are yellow Knife-edge contacts for both inside and outside measurements One hand use with the thumb-operated, fine adjustment roll Lock screw for holding the sliding jaw in position 6" (150mm) and 9" (225mm) models have a covered rack depth rod. A detachable depth rod is available for the 12" (300mm) model Parallel lines can be scribed on a workpiece by setting the caliper jaw to the required dimensions, locking the movable jaw with the lock screw and then using the front edge of the fixed jaw as the scribing surface Accuracy and Long-Life Features Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod Positive, split-gear anti-backlash control Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean We require a physical address on all items (please look at our rules and privacy policy) |
