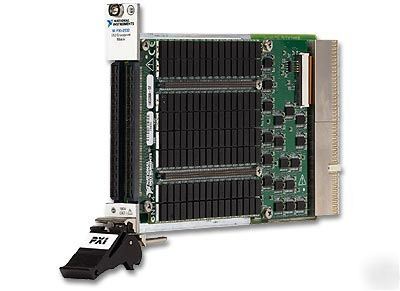

512-Crosspoint Matrix Switch Module NEW IN OPEN BAG NEVER USED!!!! The National Instruments PXI-2532 is a 512-crosspoint, high-speed matrix switch module. With the largest matrix size available in a 3U PXI slot, the NI PXI-2532 offers ultrahigh-density switch configurations in PXI. With the ability to create up to a 4x2176 or 8x1088 1-wire matrix in a single PXI chassis and even larger configurations with multichassis solutions, the PXI-2532 is ideal for high-channel-count automated test configurations. Featuring compact reed relays with switching speeds up to 2,000 cycles/s and the ability to synchronize with instruments, the PXI-2532 provides maximum throughput in a test system for signals up to 100 VDC/100 Vp or 0.5 A. Connecting Signals to the NI PXI-2532 There are several accessory options for the PXI-2532. To make any signal connection to the PXI-2532, you need to use one of the TB-264x front-mounting terminal blocks. The TB-264x terminal blocks provide signal connections through ribbon cable headers. An optional set of four "column" cables and one "row" cable is available to make these connections. If you prefer screw terminal connections, the SCB-264X screw terminal breakout accessory is available to connect to the other end of the ribbon cables coming out of an individual TB-264x front-mounting terminal block. Column Expansion Through Row Connections If a matrix size larger than one of the standard PXI-2532 configurations is required, the NI R1616 Column Expansion Cable is available to interconnect the rows of two PXI-2532s via a TB-264x terminal block. For instance, you can create a 4x256 1-wire matrix with two PXI-2532s, two TB-2640s, and one R1616 Column Expansion Cable interconnected between the TB-2640s. NI Switch Executive Switch Management Software NI Switch Executive is an intelligent switch management and routing application. With NI Switch Executive, you gain increased development productivity by interactively configuring and naming switch modules, external connections, and signal routes. You also increase test code reuse and system performance with switch programming in conjunction with NI TestStand, LabVIEW, and Measurement Studio. Ultimately, NI Switch Executive simplifies switch system configuration and increases test performance, lowering your cost to test. C-Tick, CAN/CSA, CE, FCC Part 15, IEC, UL - Product Safety Maximum Switching Voltage DC (Pollution Degree 2) Timing/Triggering/Synchronization This item is sold with a 30-day NON DOA warranty, the seller reserves the right to choose to either replace or refund at our discretion, based on the availability and feasibility of replacement product. (please look at our rules and privacy policy) |
