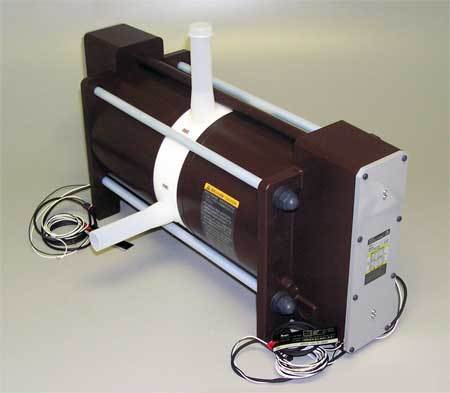

Iwaki Air-Driven 11.4 GPM Bellows Pump If you have any questions please call us at: (***)-635-4480 Front View Iwaki Bellow Pump FW-40T1 Liquid Connections for the Iwaki FW-40T1 PumpA> Proximity Sensor Switch Cable Connections Iwaki America FW Series Air Driven Bellows Pumps consist of a high purity virgin fluoroplastic pump head assembly with dual bellows and internal valving. A bellows is affixed on each side of the pump head assembly which houses the suction and discharge valves. A connecting rod and shaft system are mounted to the bellows and structural air chambers which seal against the pump head assembly. The bellows move reciprocally in the air chambers as a result of alternating pressurization of the air chambers, by which liquid is pumped continuously. Position of each bellows is monitored by proximity sensors mounted on cylinder head covers. Signals from the proximity are used by the controller system to govern the 4-way solenoid valve and subsequent pressurization of the pump air chambers * Max. Flow Rate GPM(Lpm): * Liquid Temperature F(C): * 50 – 212 (10 - 100) * Supply Air Pressure* PSI: * Ambient Temperature F(C): * 32 -104 (0 - 40) * Maximum Stroke Speed SPM: * Pump Connection Size: * Supply Air Connection Size: * Non-Wetted Parts: * PTFE coated Aluminum & SS304 Information gather from the manufacture. Specifications above may vary slightly from the actual unit pictured the posting. This does not mean that the unit doesn’t work, only that we have not tested or checked out the merchandise, or are not knowledgeable in that specific item. If you have any questions please feel free to call (***)-635-4480 Any questions call us at : (***)-635-4480 FOR OTHER EQUIPMENT ALSO PLEASE SEE MY ME PAGE BY CLICKING THE LINK BELOW note all text and photos copyright 2008 1113-7 (please look at our rules and privacy policy) |
