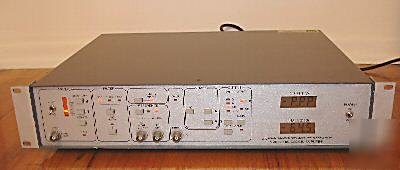

EG&G PRINCETON APPLIED RESEARCH 5104 LOCK-IN AMPLIFIER W/MANUAL! Input impedance :10 MOhms in parallel by 20 pF; Computer controllable, with fundamental or flat response, up to 90 dB dynamic reserve, full scale sensitivity and a power line interference filter Frequency Range: 5 Hz - 20 KHz Sensitivity (full scale): 100µV (10µV with X10 Output Expand) to 3V. Variable 1-3-10 sequence or continuous Maximum input voltage:±200 VDC; 10 V ac pk-pk. Maximum common voltage: 10 V pk-pk. Noise 25 mV per rooot Hz at 1 kHz. Gain stability :100 ppm/ÎC Time constants: 10 ms, 100ms, & 1s at both 6 dB/octave and 12 dB/octave;3s at 12 dB/octave. Dynamic reserve:70 dB with tracking filter ON; 40 dB with tracking filter OFF; Putput expand increases reserve to 90 dB (filter ON) or 60 dB (filter OFF). Harmonic rejection: >55 dB with tracking filter ON. * Money Order/Cashier Checks * Personal Checks will have to wait to clear first (please look at our rules and privacy policy) |
